TECHNICAL SPECIFICATIONS
KEY FEATURES
4-Sided Hermetic Sealing System
Reliable sealing on all four sides for controlled cleanroom separation.
Airtight Performance Under Pressure
Engeneered to support stable pressure conditions between cleanroom zones.
Precision-Controlled Movement
Smooth and controlled opening and closing for reliable daily operation.
Microprocessor-Controlled Drive
Integrated drive control for precise, consistent and safe door operation.
Controlled Pressure Separation
Maintains controlled separation between pressure-regulated cleanroom zones.
Cleanroom-Optimised Construction
Smooth, hygienic design suitable for demanding cleanroom environments.
INDUSTRIES & APPLICATIONS
PRODUCT DETAILS
PRODUCT OVERVIEW
Automatic hermetic sliding doors are engineered for cleanroom environments where airtight separation and precise pressure control are critical.
The system maintains stable pressure differentials between cleanroom zones and eliminates uncontrolled air exchange. A four-sided sealing system ensures consistent airtight contact between the door leaf and frame, supporting reliable cleanroom conditions even in demanding environments.
A microprocessor-controlled drive enables precise and controlled movement during opening and closing. Adjustable operating parameters allow the system to adapt to specific project requirements and ensure consistent performance.
Developed to maintain airtight performance under defined pressure conditions, where controlled separation between cleanroom zones is essential to process stability.
WARRANTY

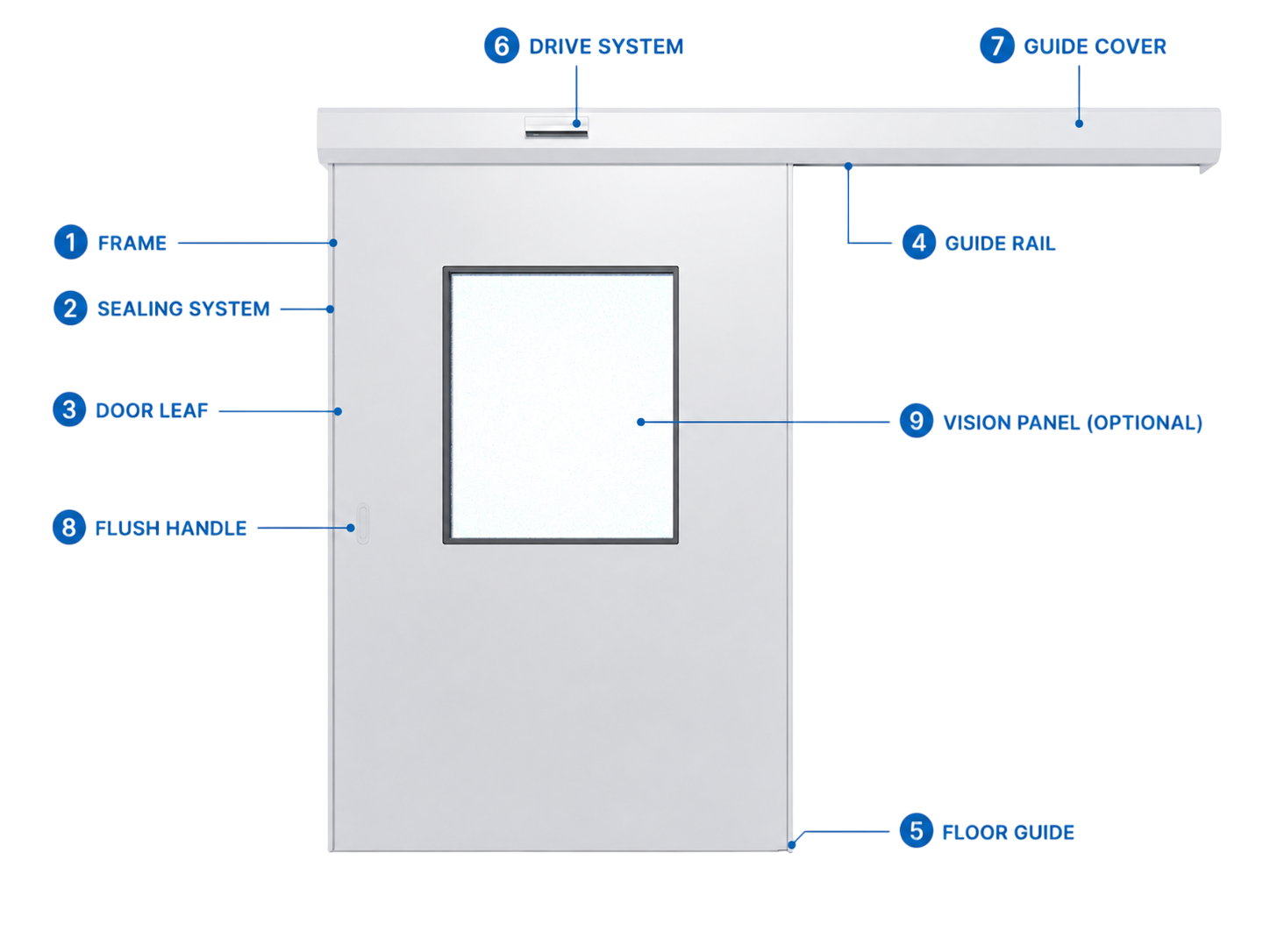

DOOR SYSTEM
1 FRAME
Anodized aluminium frame ensuring stable installation and precise integration into cleanroom wall systems.
2 SEALING SYSTEM
4-sided rubber gasket with cleanroom-certified sealing, ensuring consistent airtight contact and stable pressure separation between cleanroom zones.
3 DOOR LEAF
48 mm thick door panel with max-compact, coated, or glass surface options, developed for durability and hygienic performance.
4 GUIDE RAIL
Upper aluminium guide system ensuring controlled sliding movement and stable door alignment during operation.
5 FLOOR GUIDE
Ensures precise positioning and stable alignment of the door leaf throughout operation.
6 DRIVE SYSTEM
DC motor with microprocessor control ensuring precise movement and adjustable parameters for controlled operation under defined conditions.
7 GUIDE COVER
Anodized aluminium cover protecting the drive system and ensuring a clean, integrated finish.

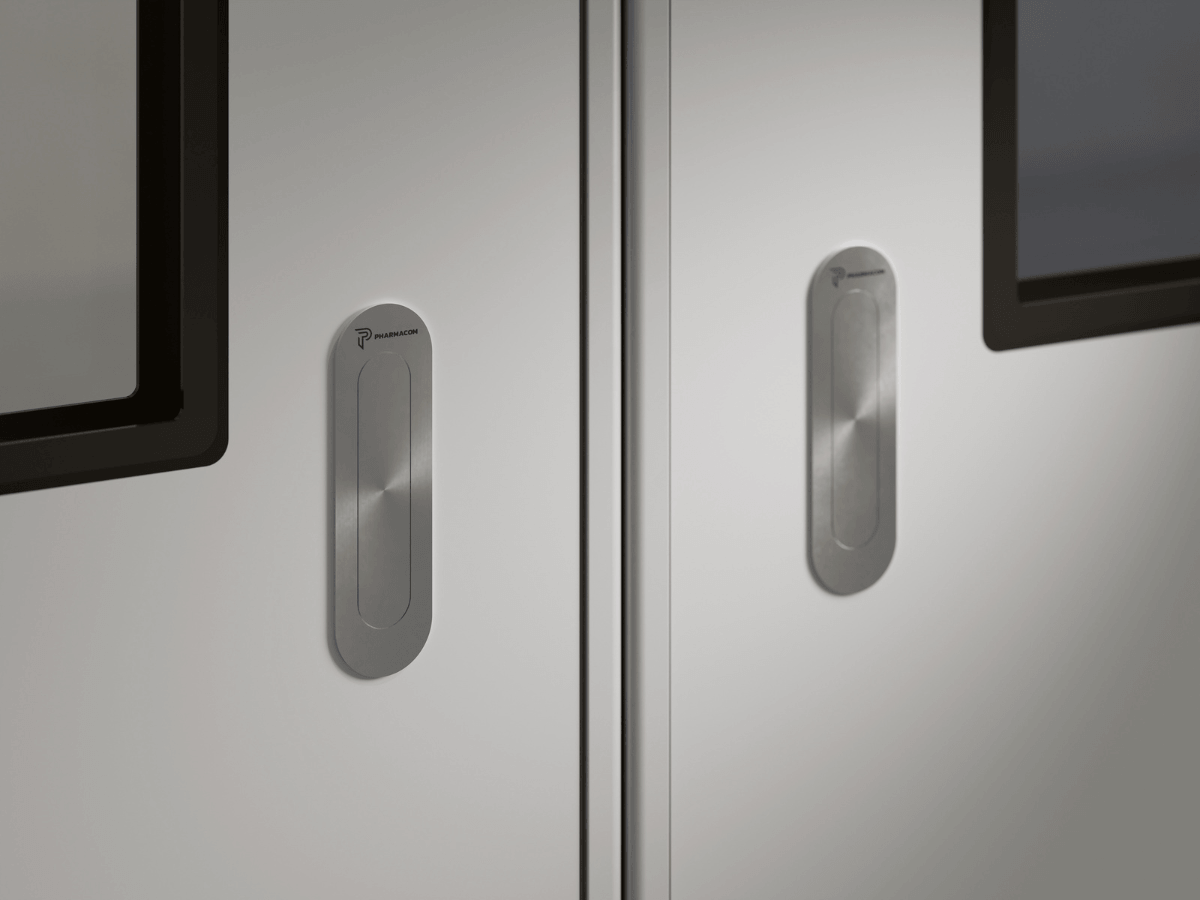

8 FLUSH HANDLE
Handle integrated into the door leaf, minimizing surface protrusions and supporting cleanroom hygiene.
9 VISION PANEL (OPTIONAL)
Optional glazed section improving visibility between cleanroom zones without affecting door performance.
SAFETY SYSTEM
1 PRESENCE SENSORS
Sensors monitor the door area and detect movement or obstacles during operation.
2 OBSTACLE DETECTION
Door movement is automatically stopped and reversed in case of obstruction.
3 VISUAL STATUS INDICATION
Integrated LED indicators provide clear door status (open / closed) for safe operation.
4 ELECTRICAL GROUNDING
The door system is electrically grounded to ensure safe and reliable operation.
5 EMERGENCY OPENING
Manual opening via integrated handle or automatic opening via UPS in case of power failure.
CONTROL SYSTEM
1 MICROPROCESSOR CONTROL
Ensures precise and stable door operation under defined parameters.
2 ADJUSTABLE PARAMETERS
Opening speed, closing speed, acceleration and opening time are adjustable.
3 OPERATING MODES
Multiple operating modes enable controlled door behaviour.
4 USER INTERFACE
Control via buttons and LED indicators with status indication.
5 PARAMETER SETTINGS
Opening speed, closing speed, hold-open time and opening width are adjustable.
6 AUTOMATIC CONFIGURATION
Automatic setup and calibration after installation or adjustment.
7 SYSTEM INTEGRATION
Integration into interlock systems and building management systems.
CONFIGURATION OPTIONS
1 DIMENSIONS
- Custom dimensions on request
2 DOOR TYPE

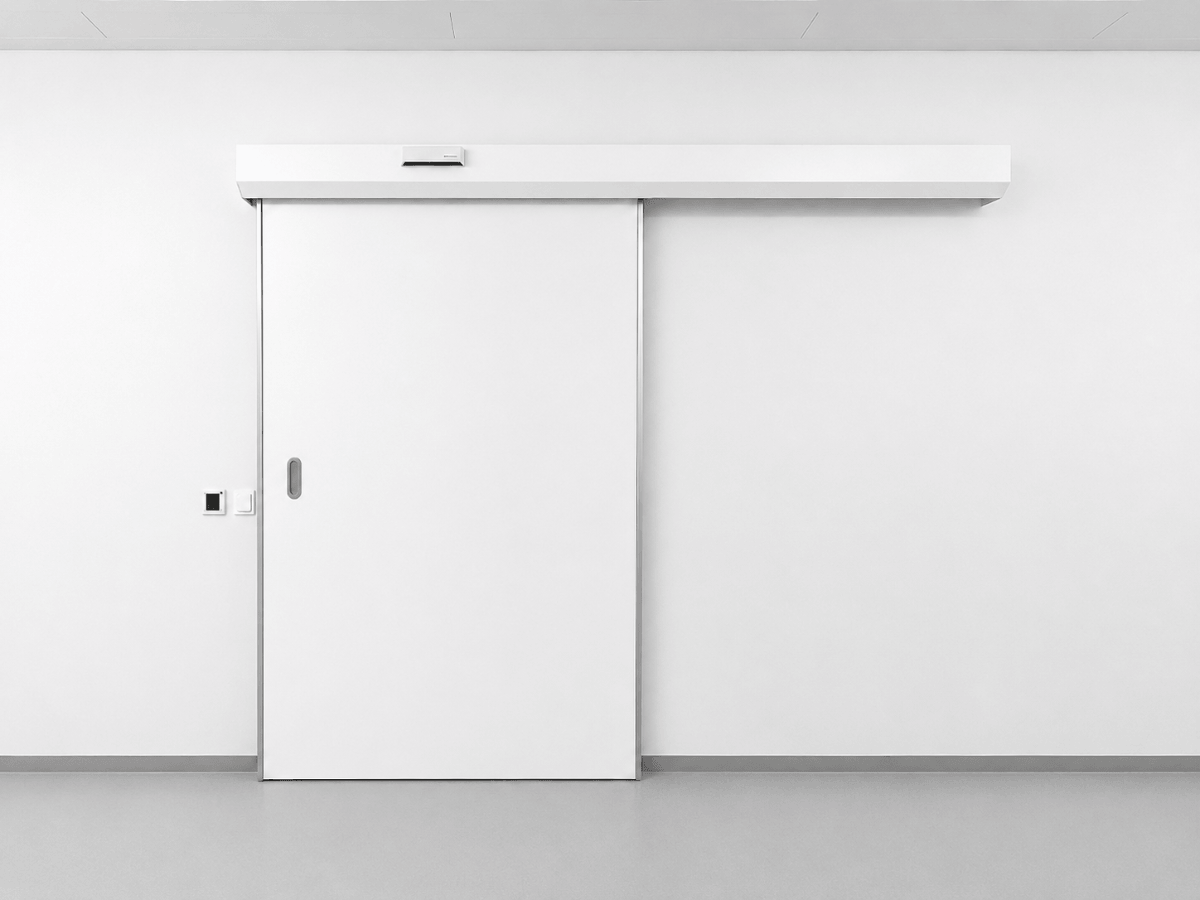

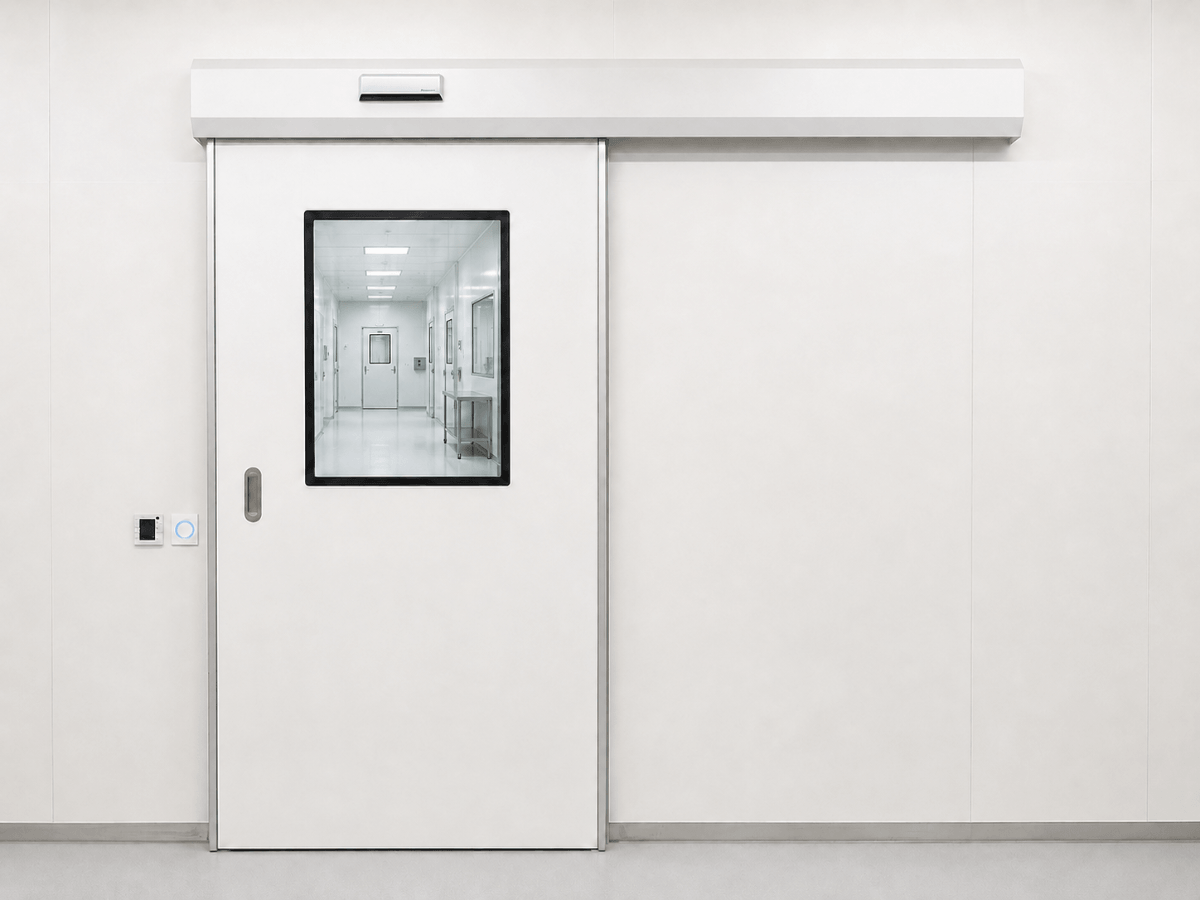

- Single-wing

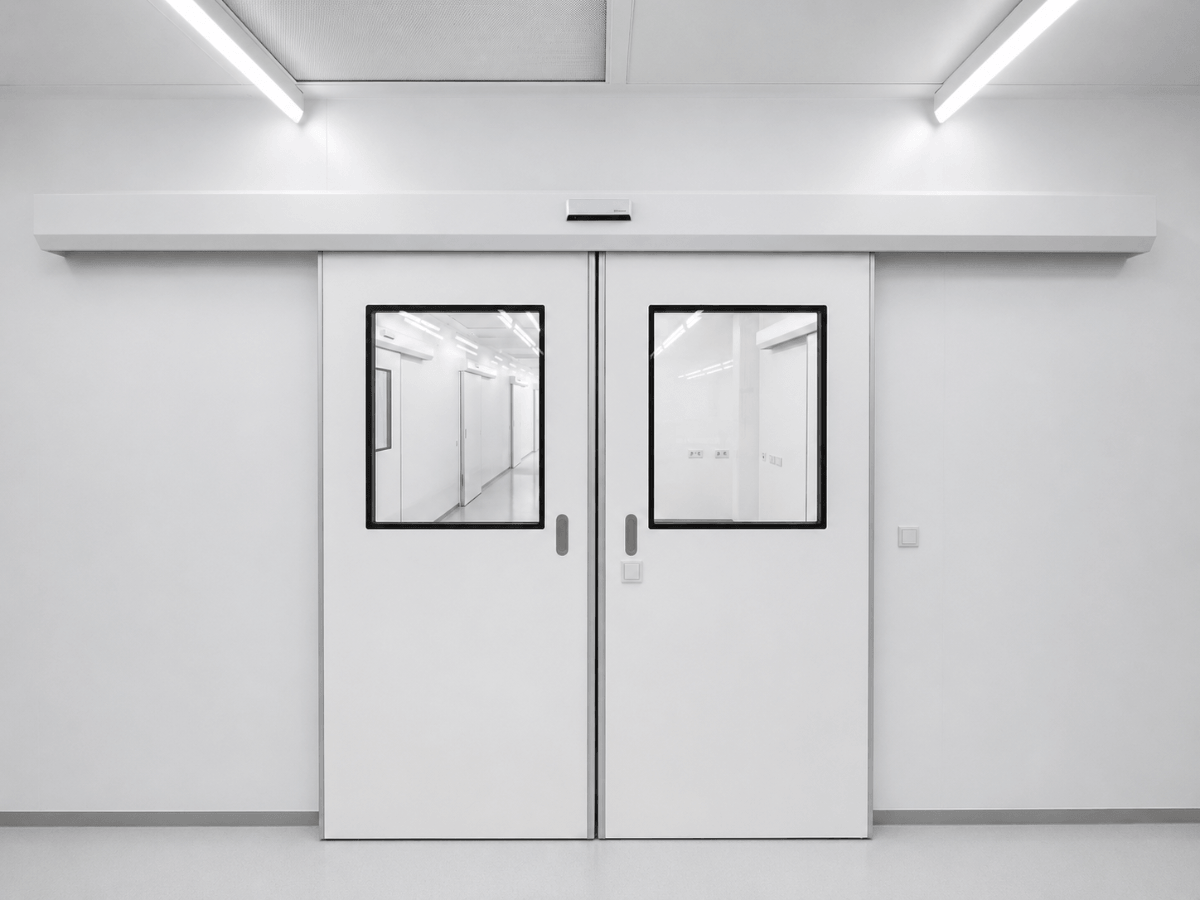

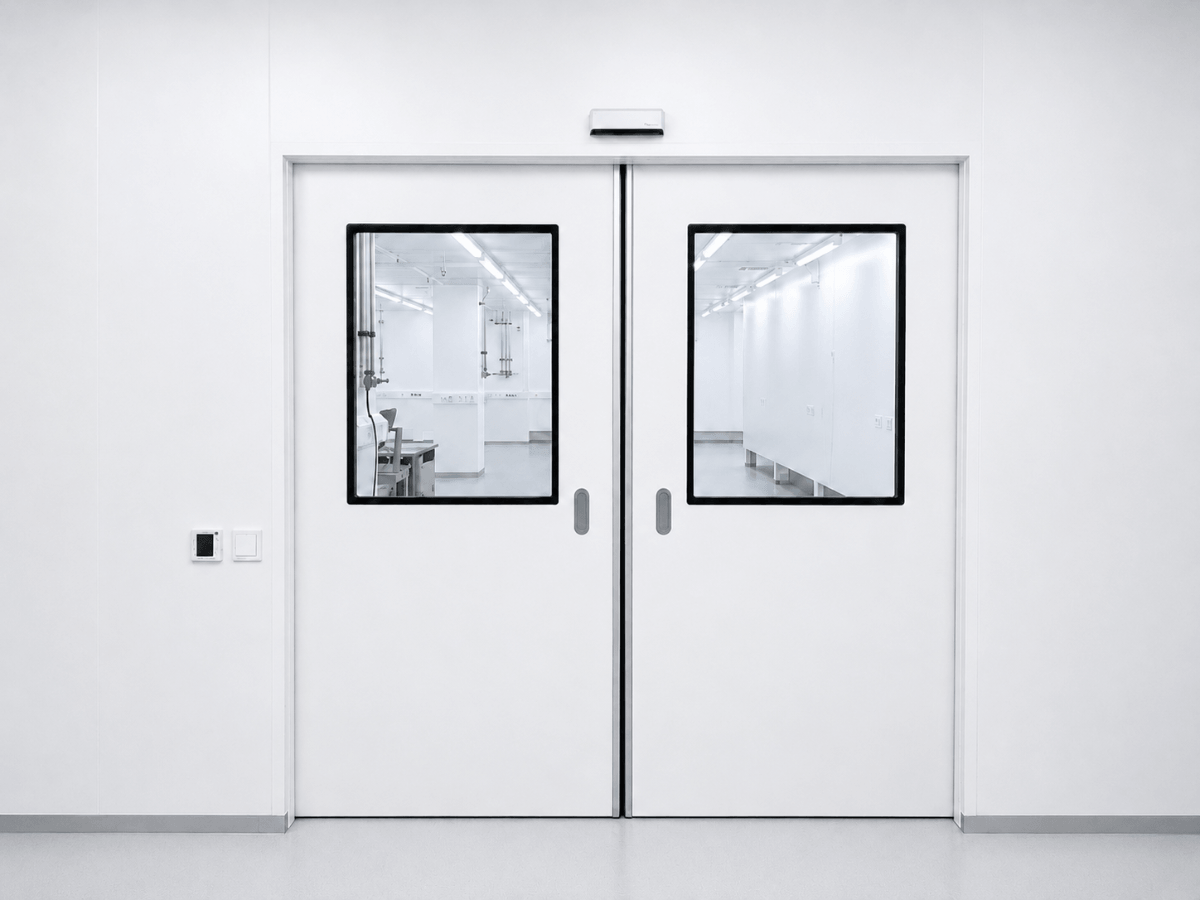

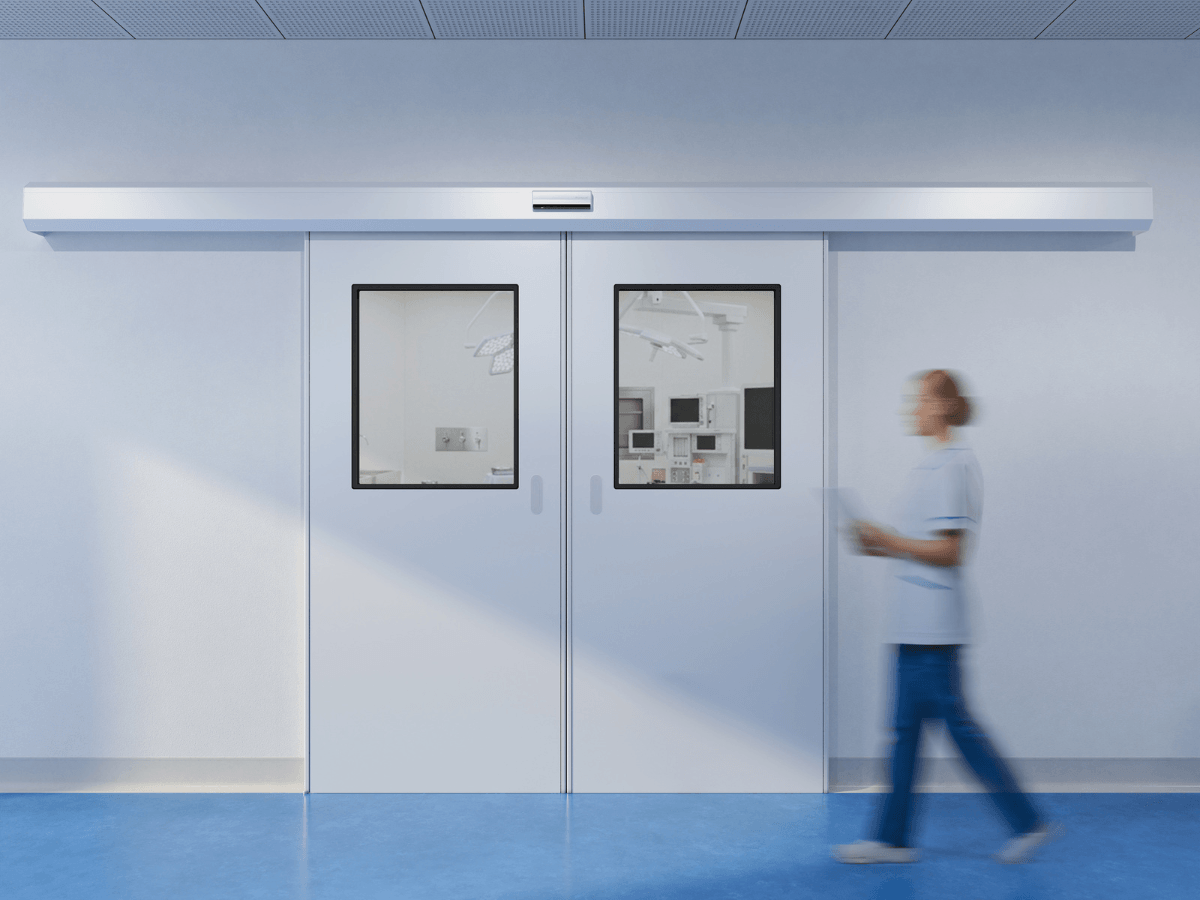

- Double-wing
3 ACTIVATION

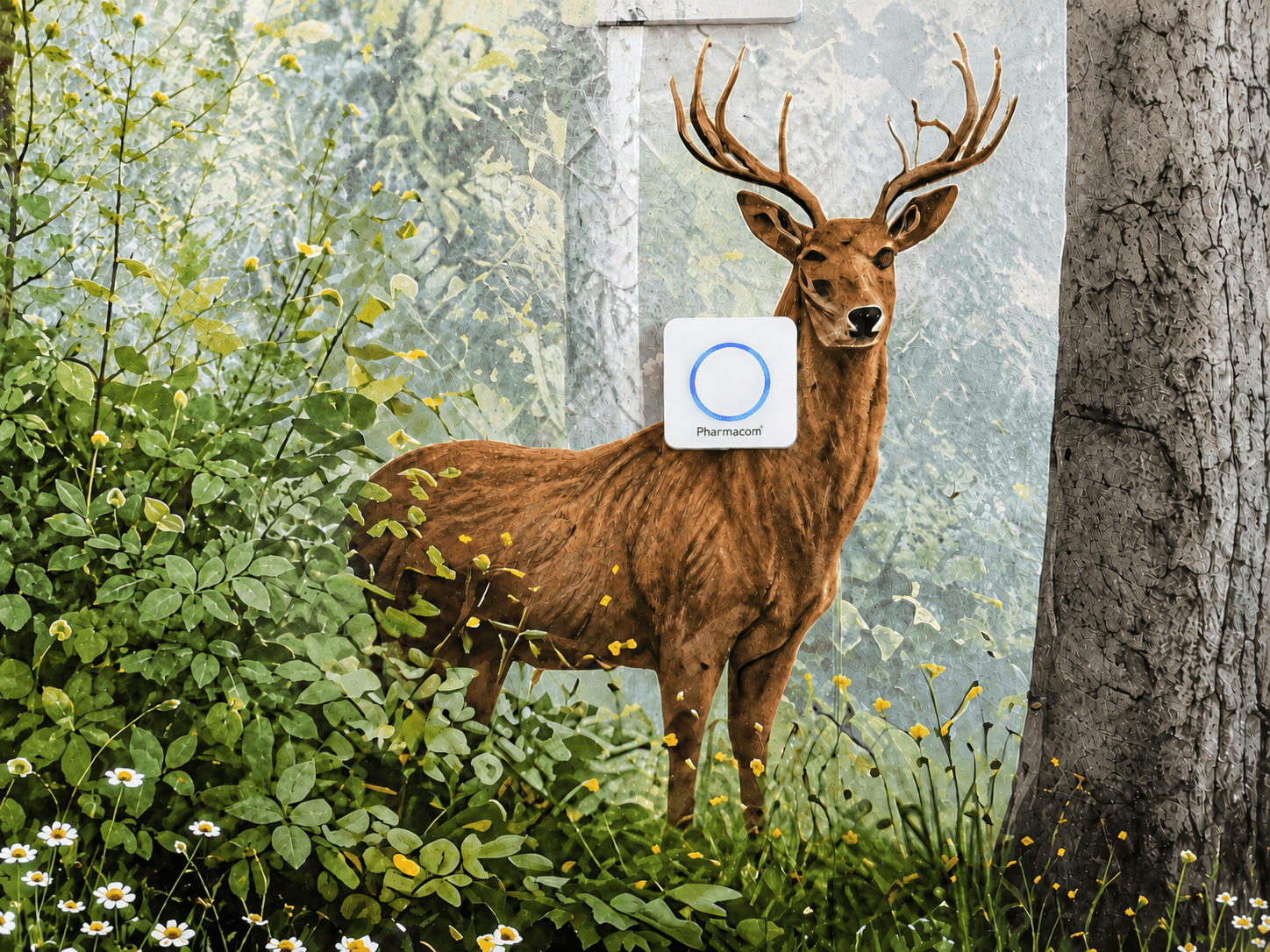

- Cleanroom touchless button
- Radar sensor
4 CONTROL & INTEGRATION
- Interlock system integration
- PHA-DO-SI smart door integration (view details)
5 DOOR LEAF DESIGN
- Solid door panel with HPL compact laminate surface

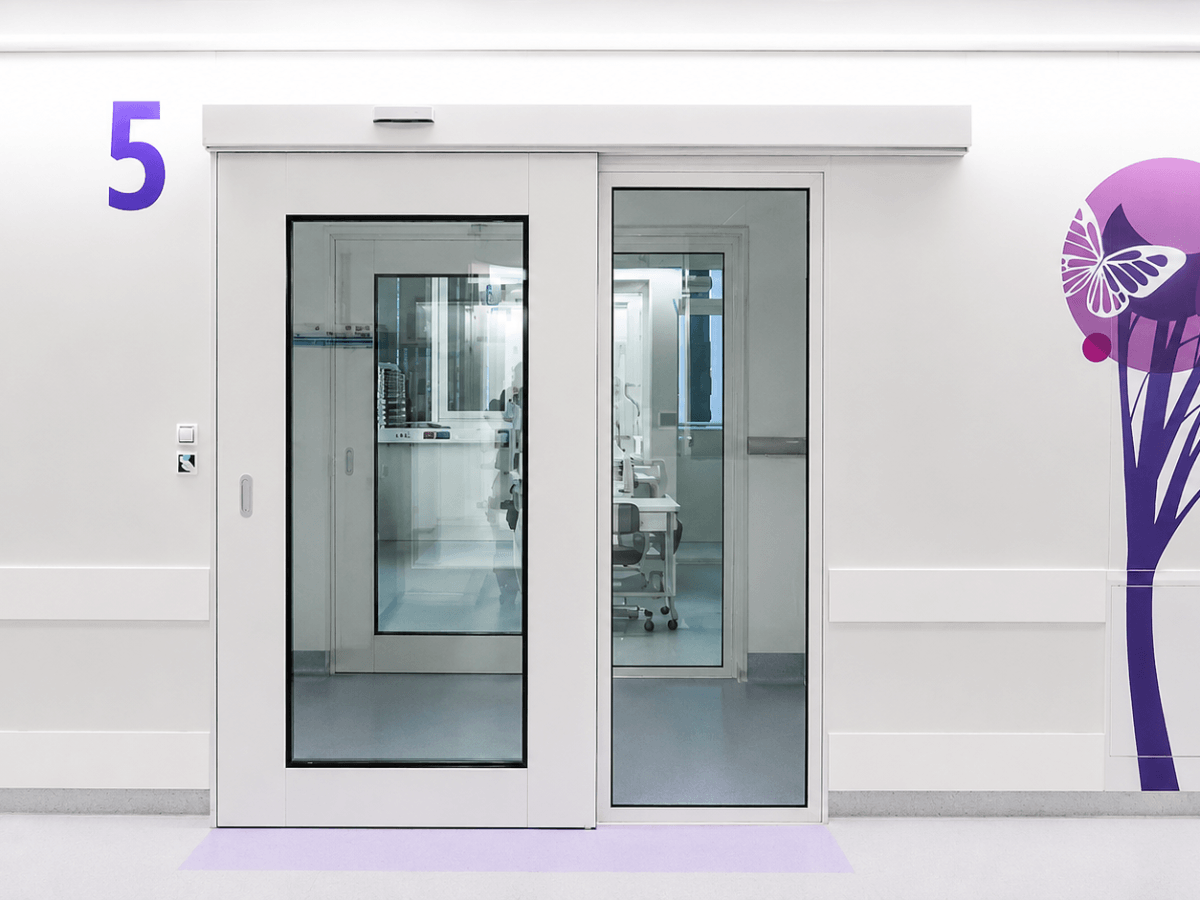

- Fully glazed door panel
- Custom RAL colour finish
6 VISION

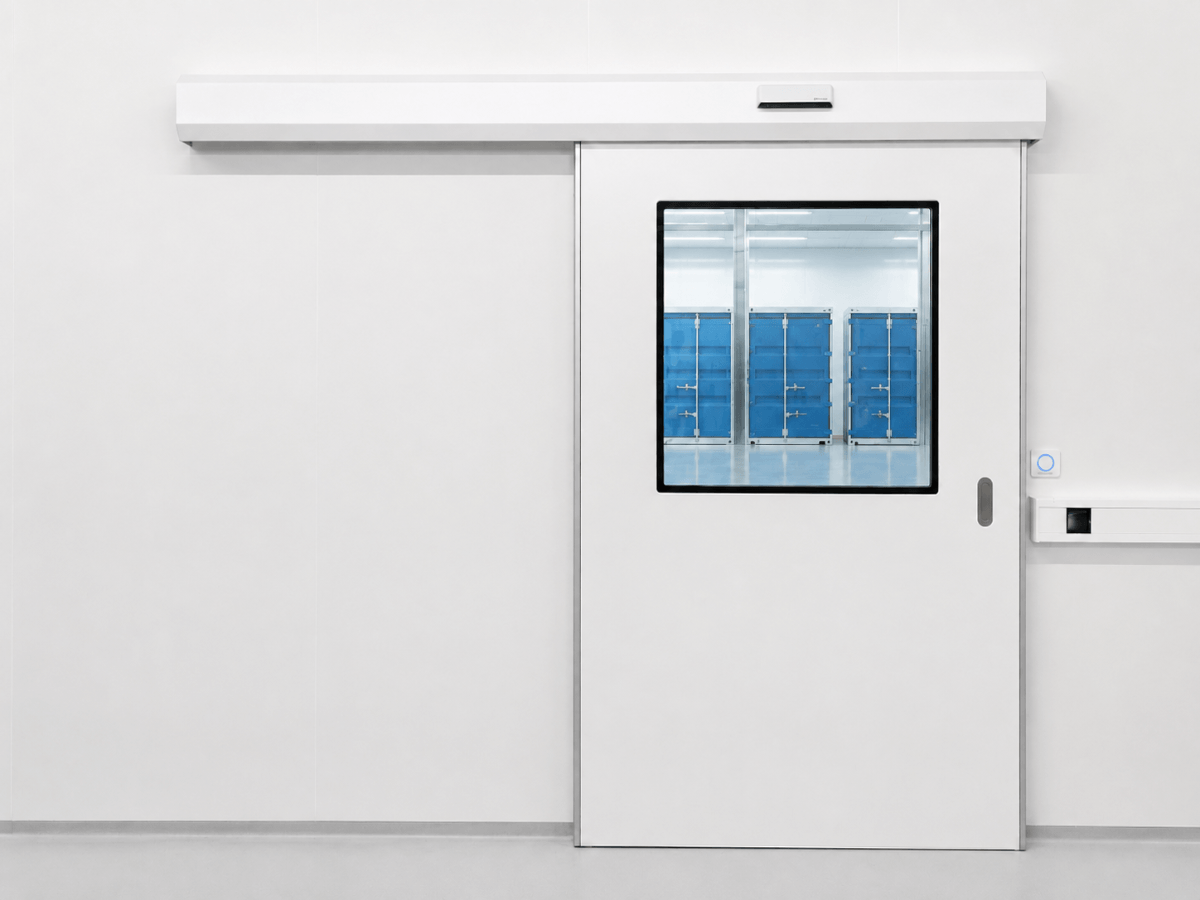

- Integrated vision window
CERTIFICATION & COMPLIANCE
Air Permeability Test
Verified sealing performance under positive and negative pressure conditions
CE Conformity
Compliance with applicable EU safety and performance directives
ZAG Test Report
Test report issued by an accredited testing institution
