TURN DOORS
INTO SMART ACCESS POINTS
PHA-DO-SI connects door systems with AGVs, AMRs, automation platforms and central control systems, enabling doors to communicate as part of a connected workflow. It supports real-time signalling, controlled access and synchronized operation across modern cleanroom, industrial and intralogistics environments.

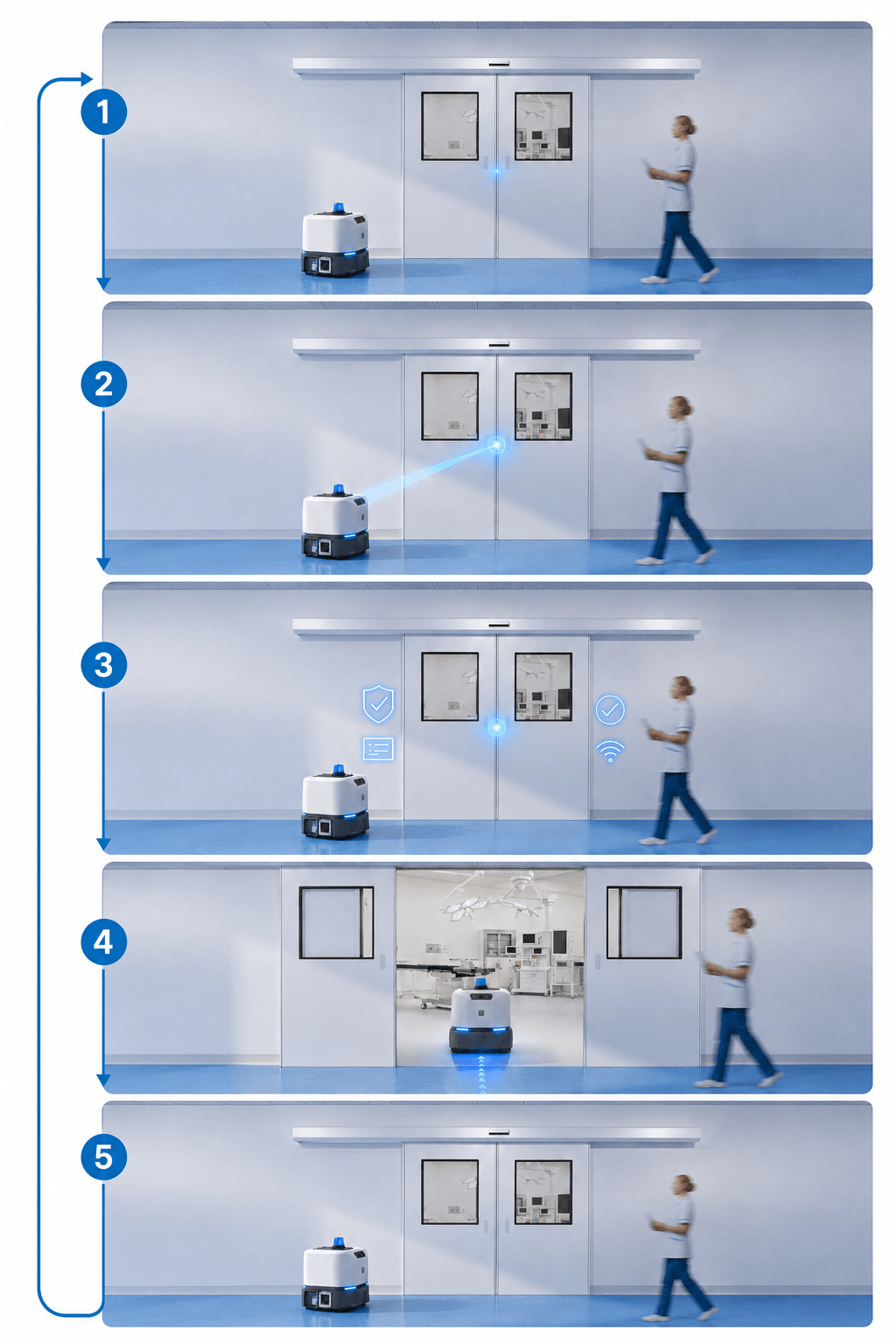

HOW PHA-DO-SI WORKS
PHA-DO-SI enables seamless, real-time communication between automation systems and door infrastructure. When an AGV, AMR or central control system approaches the door, the system receives the request, verifies all required safety, access and priority conditions, sends the appropriate command to the door and continuously reports operational status back to the central system.
In smart industrial workflows, PHA-DO-SI can also support coordinated passage management, for example when multiple robots interact with the same access point and priority-based passage needs to be controlled.
This creates a controlled feedback loop for smooth, safe and synchronized door operation in automated cleanroom and smart industrial environments.

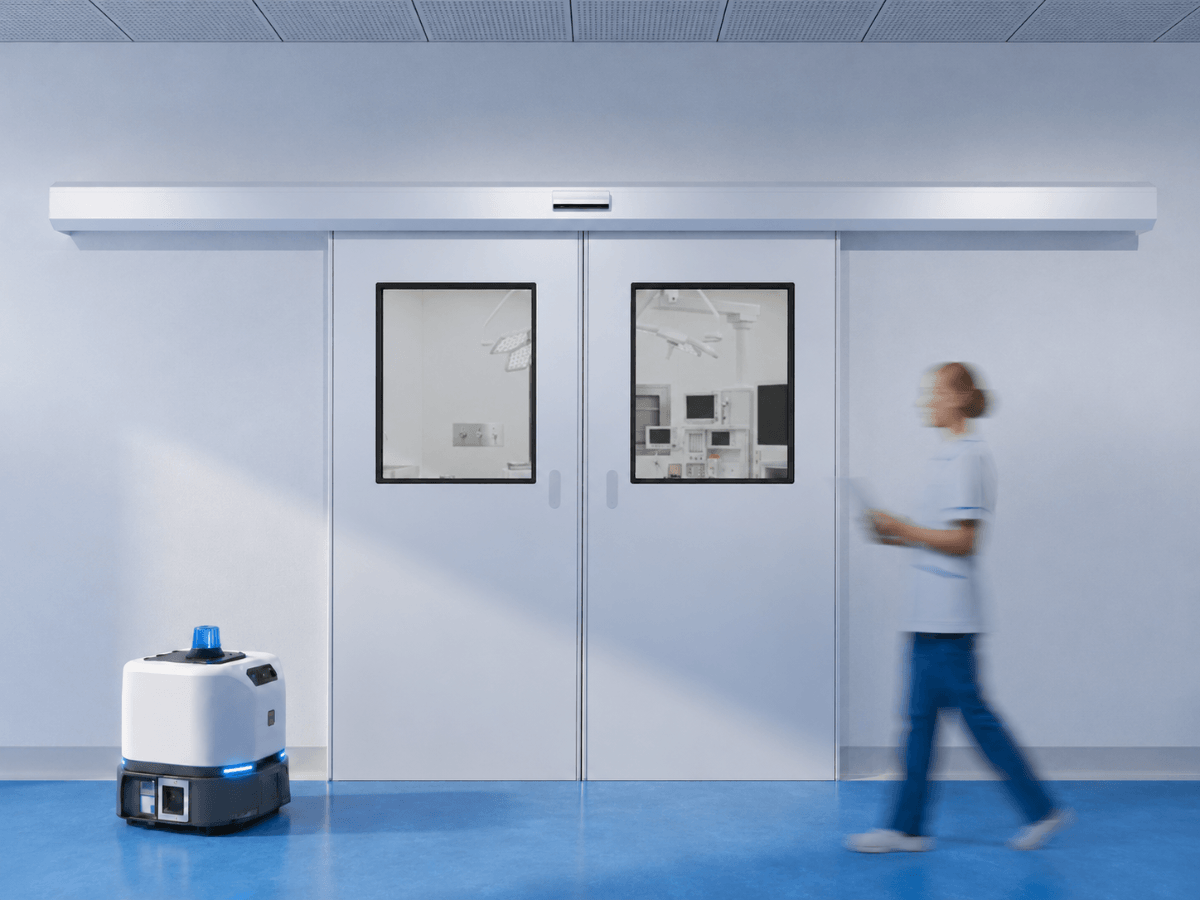

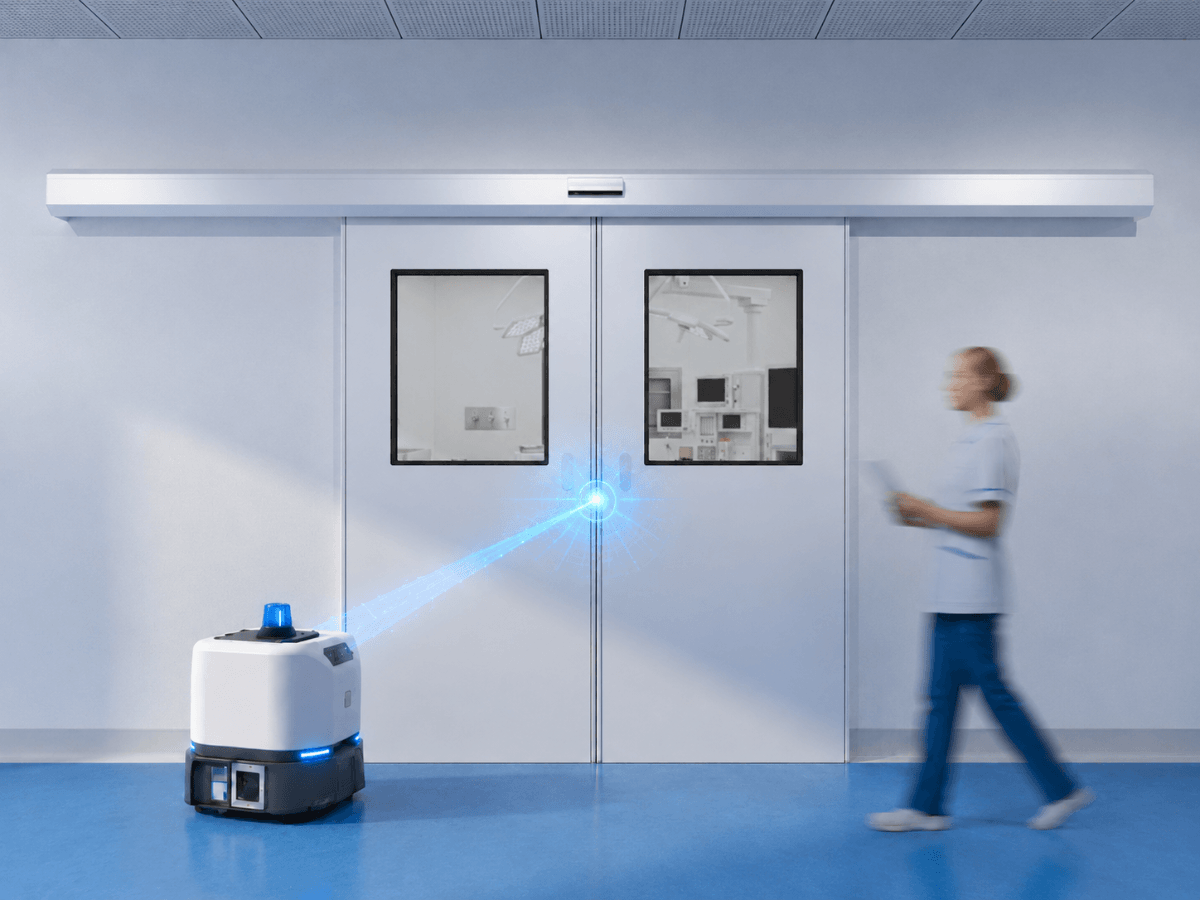

1 SIGNAL RECEIVED
PHA-DO-SI receives a request from an AGV, AMR, automated system or central control platform as it approaches the door. The system identifies the signal source and initiates real-time communication with the door infrastructure.
2 CONDITION CHECK
Before movement is activated, the system verifies access permissions, safety sensors, current door status and operational conditions. This helps prevent uncontrolled activation and supports safe passage through the controlled environment.
3 COMMAND EXECUTION
Once all required conditions are confirmed, PHA-DO-SI sends a validated command to the door system for opening, closing, locking or another configured operation.

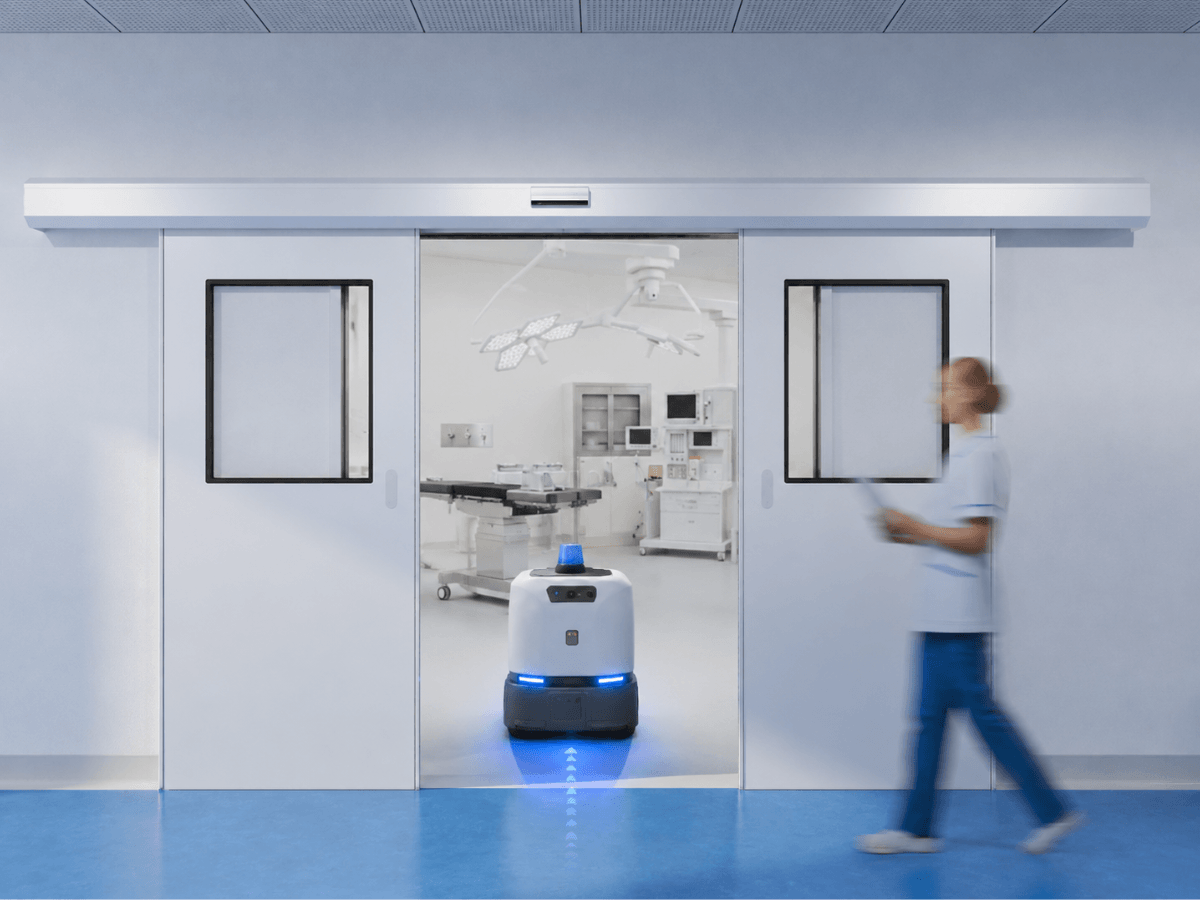

4 DOOR OPERATION
The door opens or closes according to the validated command, allowing AGVs, AMRs, personnel or automated processes to pass safely and smoothly.

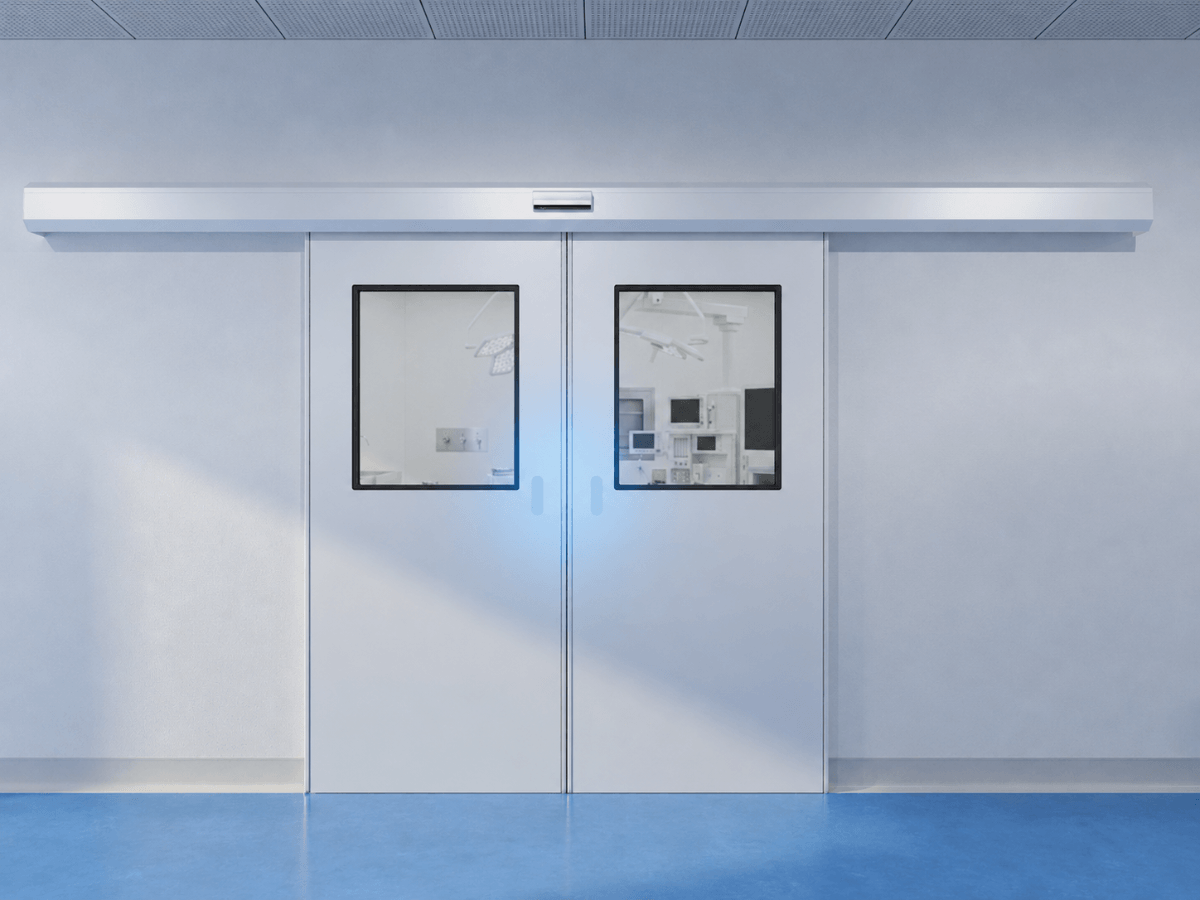

5 FEEDBACK LOOP
After completion, status and operational data are sent back to the central system, closing the feedback loop and enabling monitoring, diagnostics and traffic coordination.
KEY FEATURES
Smart System Connectivity
Connects door systems with AGVs, AMRs, fleet management platforms and central control systems.
Real-Time Communication
Enables continuous data exchange between doors and automation systems for smooth, safe and synchronized operation.
VDA 5050 Compatibility
Supports standardized communication with AGV and AMR systems in modern intralogistics environments.
Centralized Monitoring
Provides real-time visibility of door status, sensor signals, alarms, diagnostics and activity history.
Remote Door Control
Allows centralized control of door access, locking, unlocking and operational parameters.
Remote Service Support
Enables diagnostics, configuration and technical support without immediate on-site intervention.
PRODUCT DETAILS
PRODUCT OVERVIEW
PHA-DO-SI connects door systems with higher-level automation platforms, enabling real-time communication, controlled access and synchronized operation across the entire facility. It transforms doors from passive building elements into active components of automated logistics and production processes.
Acting as an interface between door hardware and digital infrastructure, the system ensures seamless data exchange, optimized workflows and reliable operation.
- SYSTEM CONNECTIVITY
Connects doors with AGVs, AMRs and central automation systems. - SMART CONTROL
Enables fast, reliable communication and coordinated door operation. - AUTOMATION READY
Supports efficient, safe and synchronized workflows.
VDA 5050 CONNECTIVITY
PHA-DO-SI enables standardized communication between automated vehicles and door systems through a VDA 5050-compatible interface.
It supports reliable interaction with AGVs, AMRs and fleet management platforms, helping door systems become part of modern intralogistics workflows.
SYSTEM INTEGRATION
- AGV – Automated Guided Vehicles
- AMR – Autonomous Mobile Robots
- Fleet management platforms
CAPABILITIES
- VDA 5050 compliant interface
- Bidirectional data exchange
- Ethernet communication
CENTRALIZED MONITORING & REMOTE CONTROL
PHA-DO-SI connects integrated door systems into one intelligent platform, enabling centralized monitoring, remote control and advanced diagnostics. It provides real-time visibility and control of door operation, access status and system activity.
REST API INTEGRATION
- ERP systems
- WMS systems
- Automation platforms
REAL-TIME MONITORING
- Door open/closed status
- Locked/unlocked state
- Sensor status
HISTORY & DIAGNOSTICS
- Event and activity history
- Error and fault tracking
- Maintenance insights
REMOTE CONTROL
- Remote locking / unlocking
- Access control
- Parameter adjustment
- Automated workflow integration
REMOTE SERVICE VIA HOTSPOT
Remote Diagnostics Without On-Site Intervention
PHA-DO-SI enables remote access for diagnostics, configuration and technical support without requiring immediate on-site intervention.
This simplifies troubleshooting, shortens response times and supports more efficient maintenance planning.
- EQUIPMENT ASSESSMENT
Technicians can remotely review fault states, diagnostic data and error history before arriving on-site.
- PARAMETER ADJUSTMENT
Operational parameters such as opening speed, lock delay and sensor thresholds can be adjusted remotely.
- REAL-TIME DIAGNOSTICS
Live monitoring of sensor status, alarms and system faults enables precise troubleshooting and faster resolution.
INDUSTRY 4.0 UPGRADE
PHA-DO-SI provides a practical path toward Industry 4.0 by upgrading existing door systems into intelligent, connected solutions. It integrates seamlessly with current infrastructure without requiring complete door replacement.
- UPGRADE EXISTING DOORS
Integrates with existing hardware — no replacement required.
- SEAMLESS INTEGRATION
Connects doors with automation platforms and central control systems.
- FAST INSTALLATION
Typically installed in approximately one hour per door.
