KEY FEATURES
High-Speed Operation
Fast opening and closing support efficient movement in high-traffic cleanroom areas.
Hermetic Sealing
Reduces air leakage and supports stable pressure-controlled cleanroom zones.
Compact Roll-Up Construction
Saves installation space with a clean, vertical roll-up door system.
Frame-Integrated Control System
Easier service access and a cleaner installation for hygienic cleanroom environments.
Hygienic Cleanroom Design
Fraunhofer IPA-tested hygienic design supports GMP cleanroom suitability.
Low Noise Operation
Optimised guidance ensures quiet, controlled movement during frequent cleanroom door cycles.
INDUSTRIES & APPLICATIONS
PRODUCT DETAILS

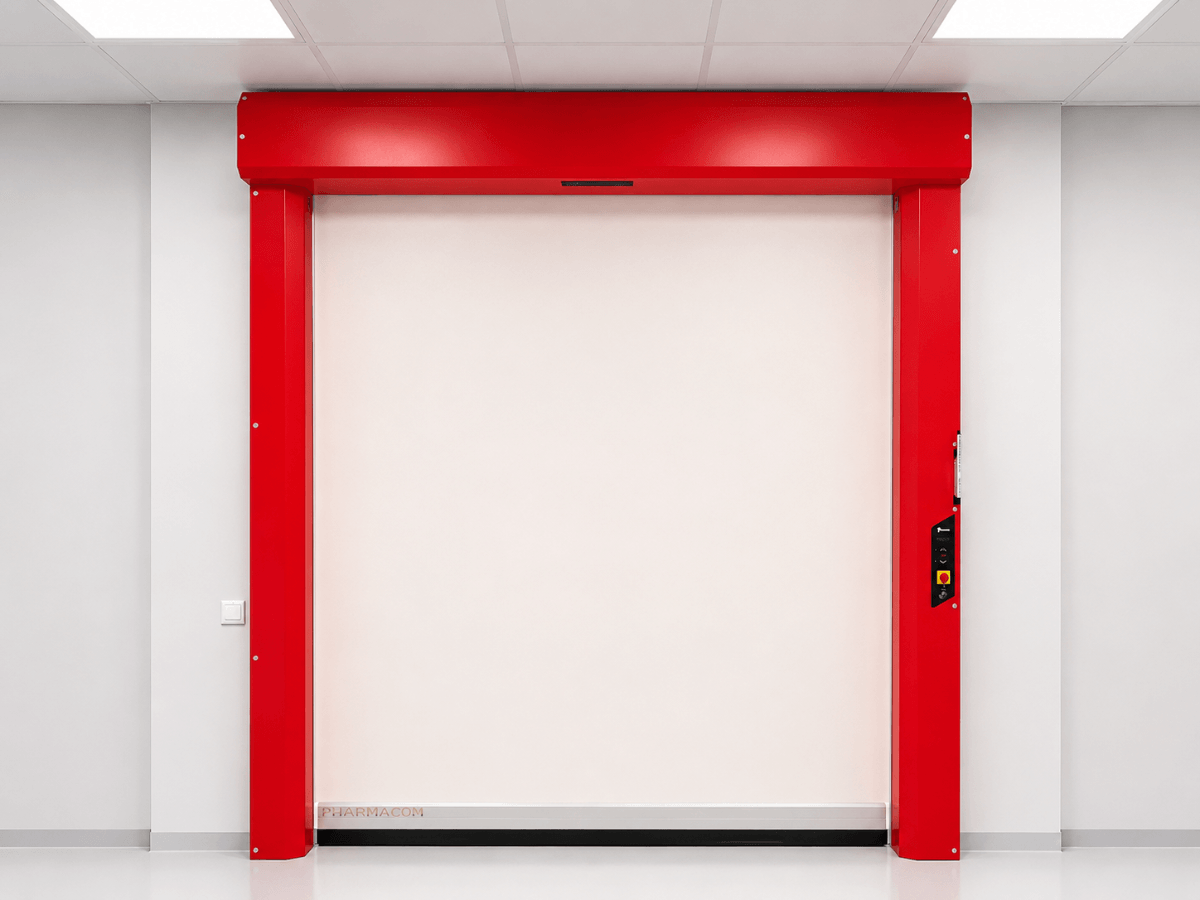

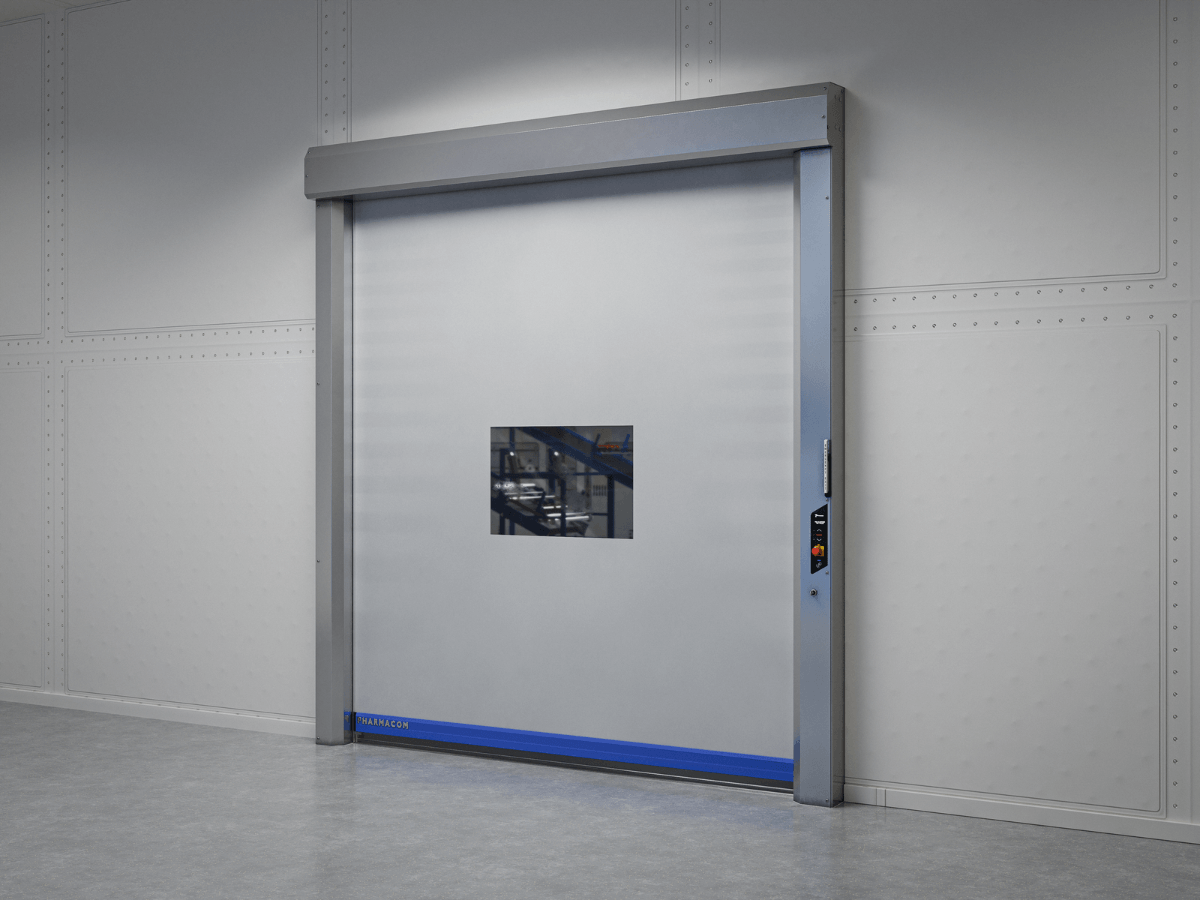

PRODUCT OVERVIEW

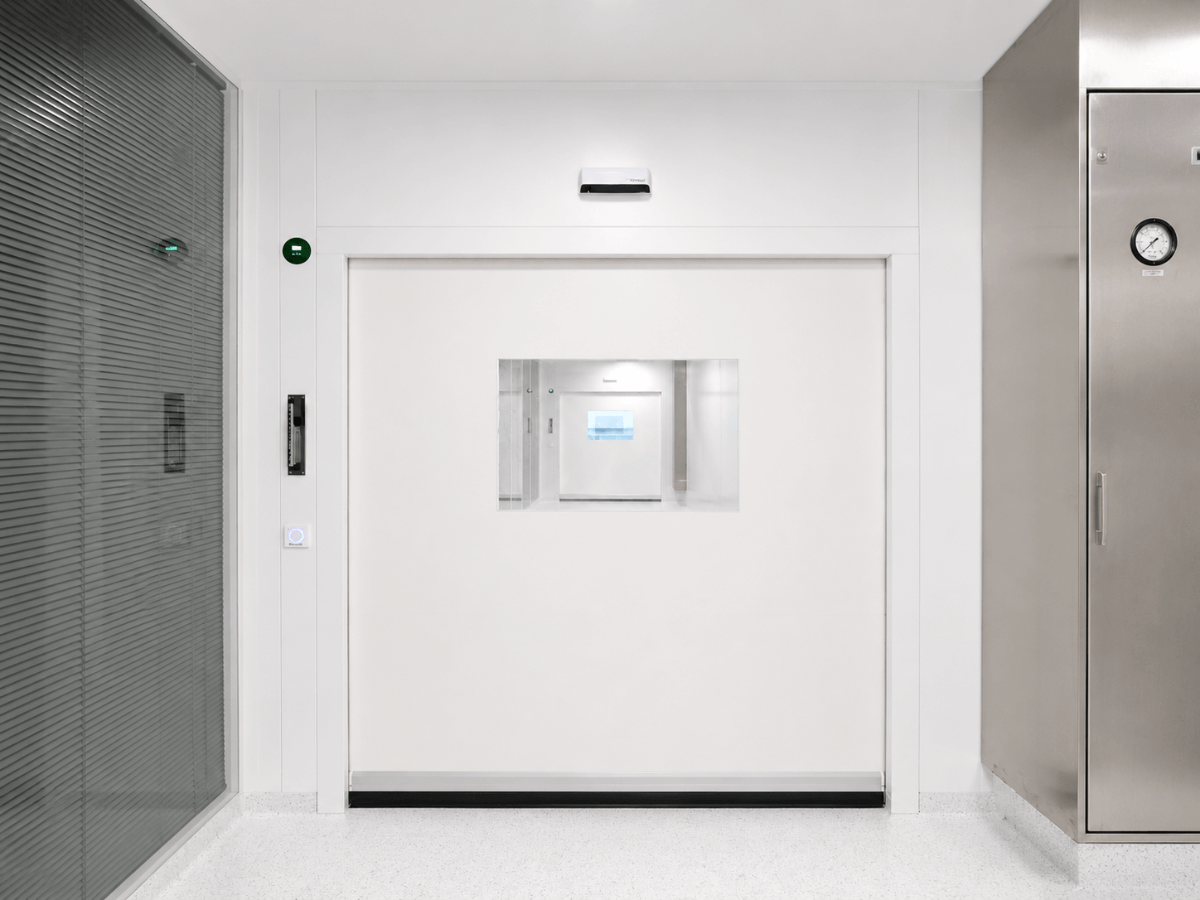

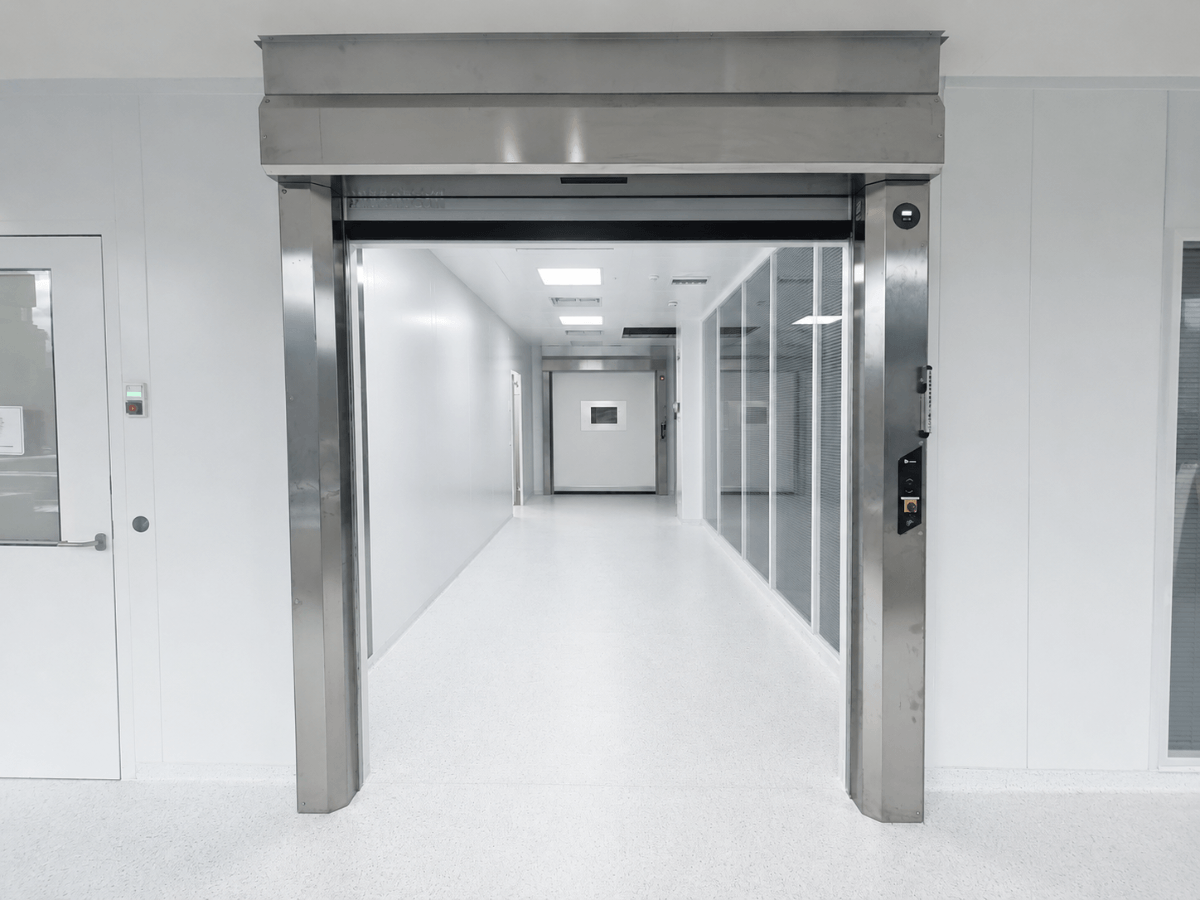

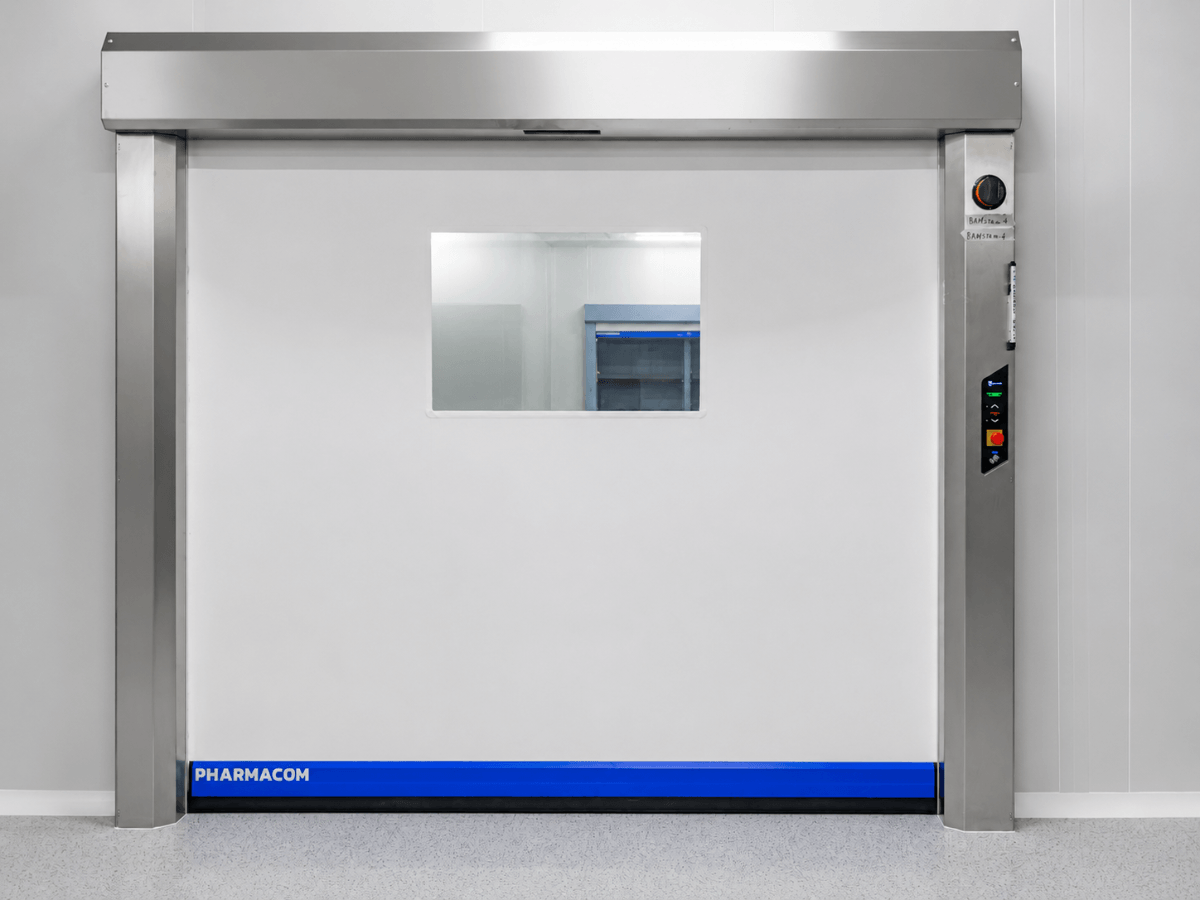

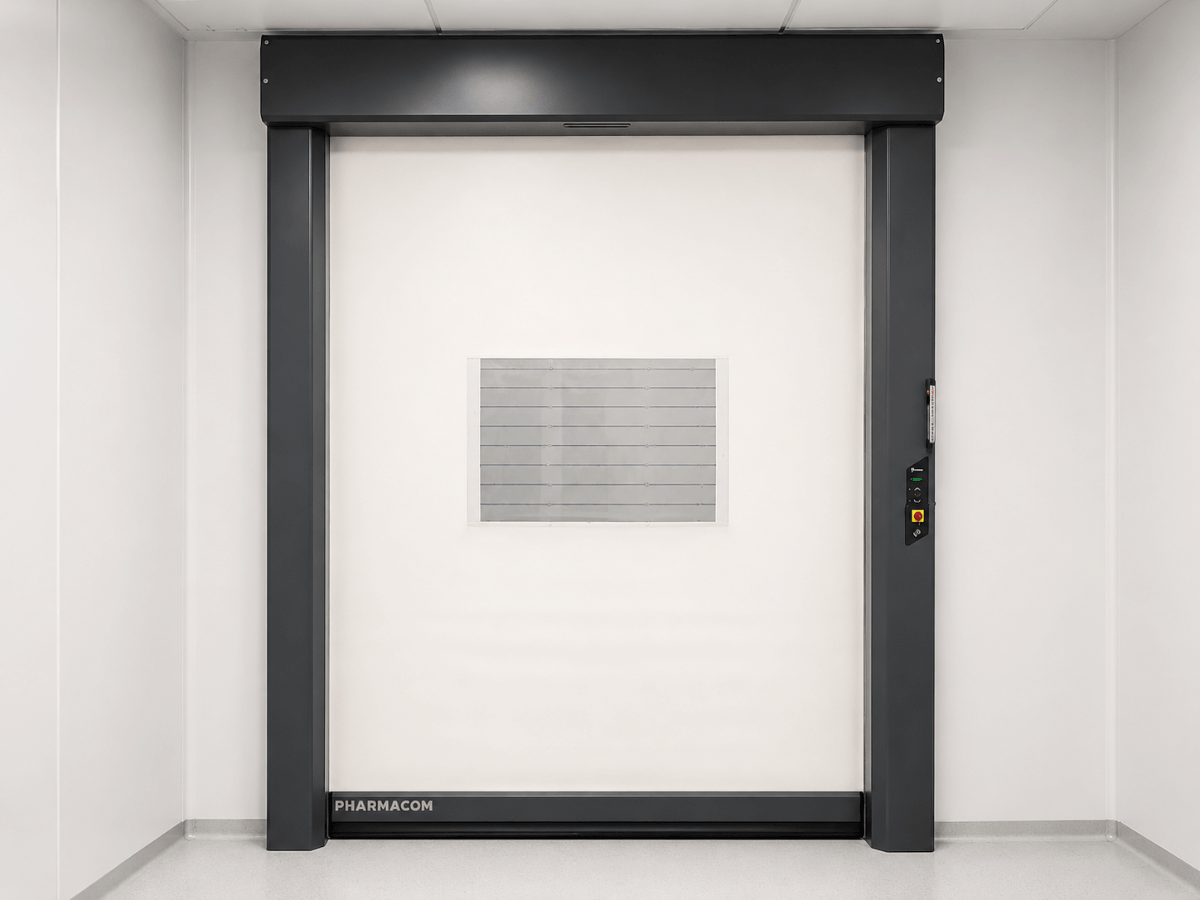

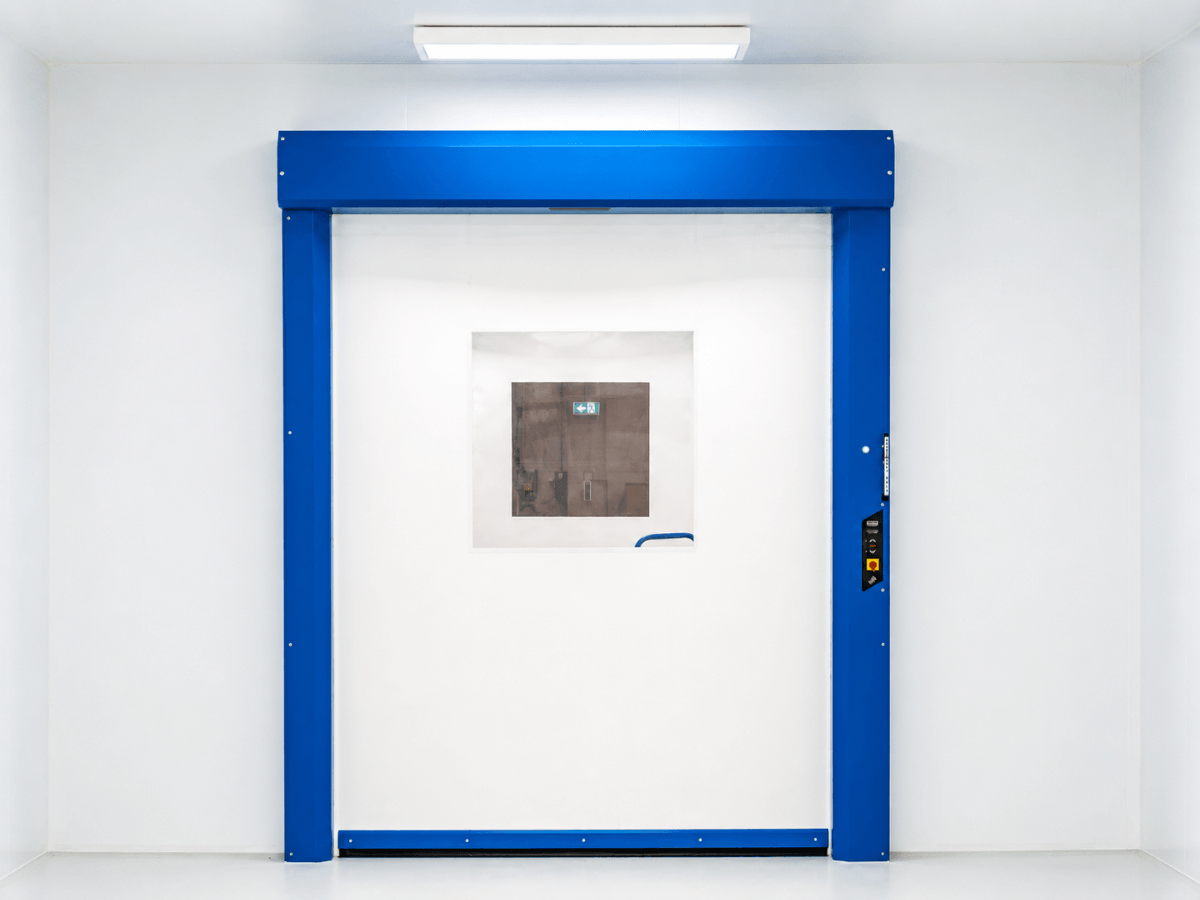

PVC Roll-Up Door Medico Cleanroom ensures fast and reliable separation between cleanroom zones. They are suitable for environments where frequent movement of personnel, materials or equipment requires rapid door cycles without disrupting controlled conditions.

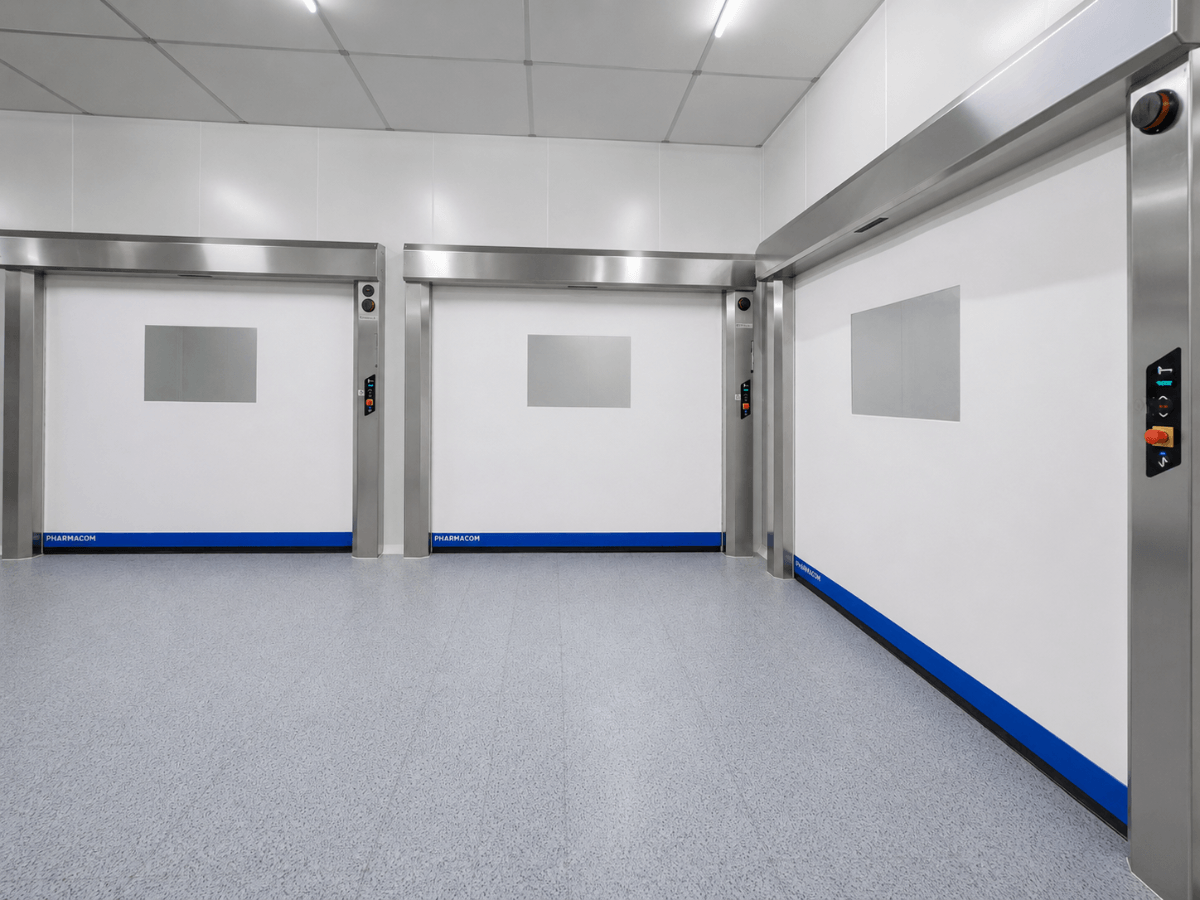

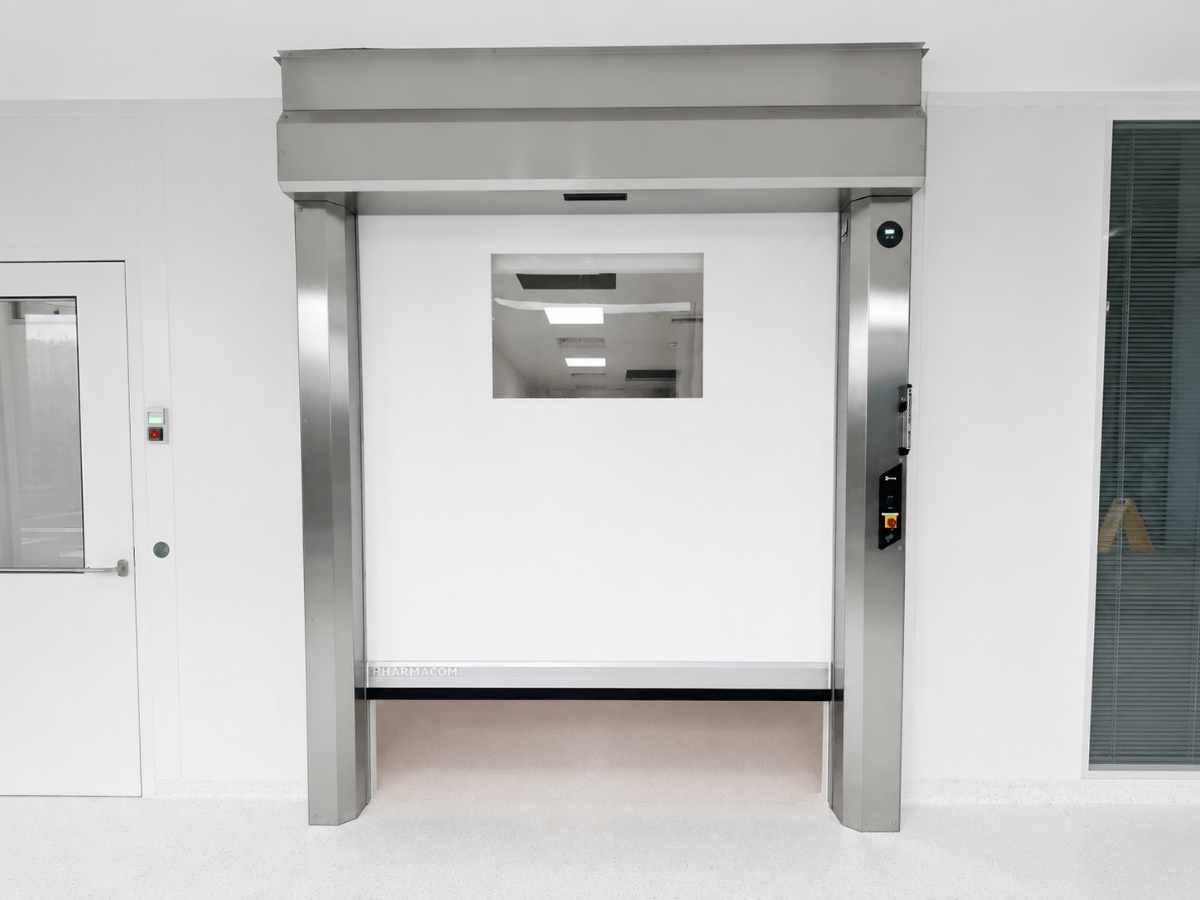

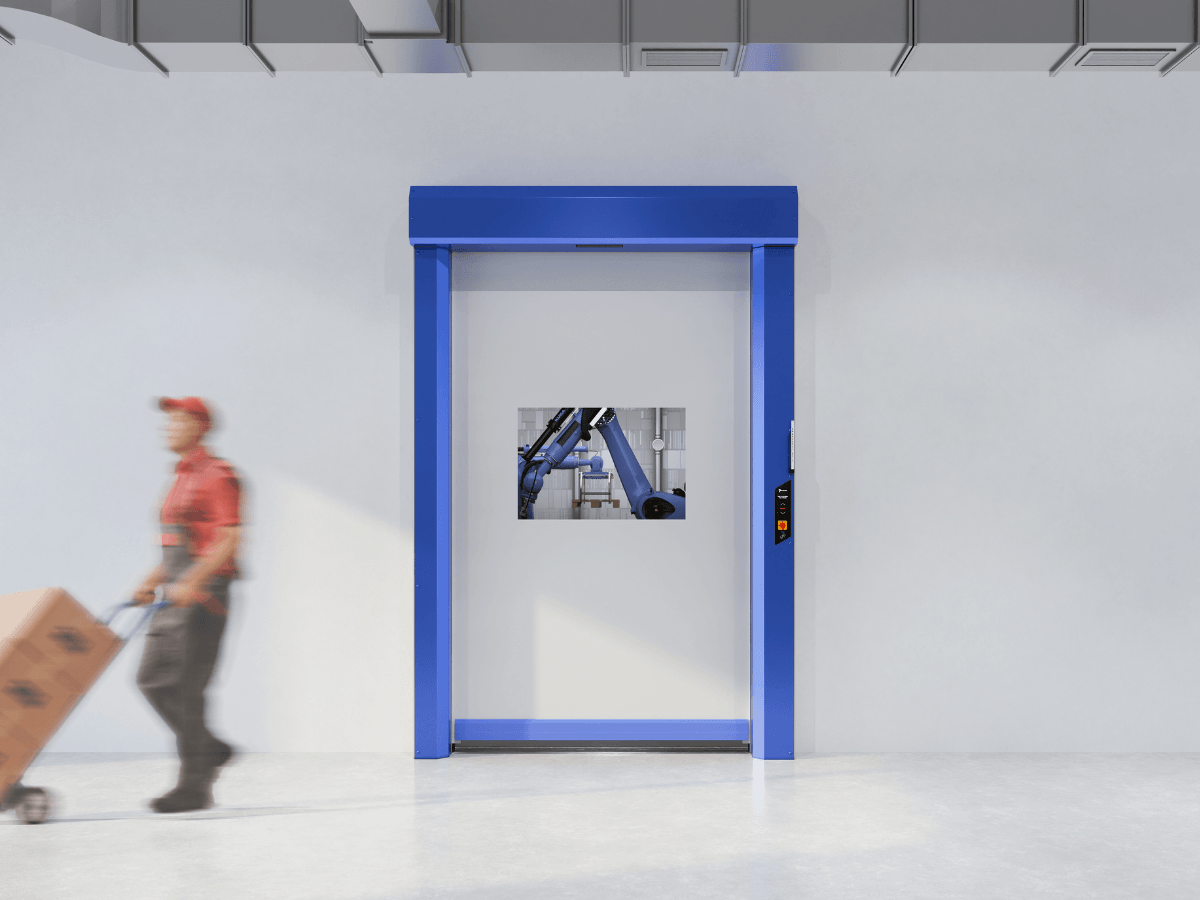

The compact roll-up mechanism enables fast opening and closing while requiring minimal installation space above the opening. This makes the system suitable for cleanroom corridors, production areas and transfer zones with intensive traffic.

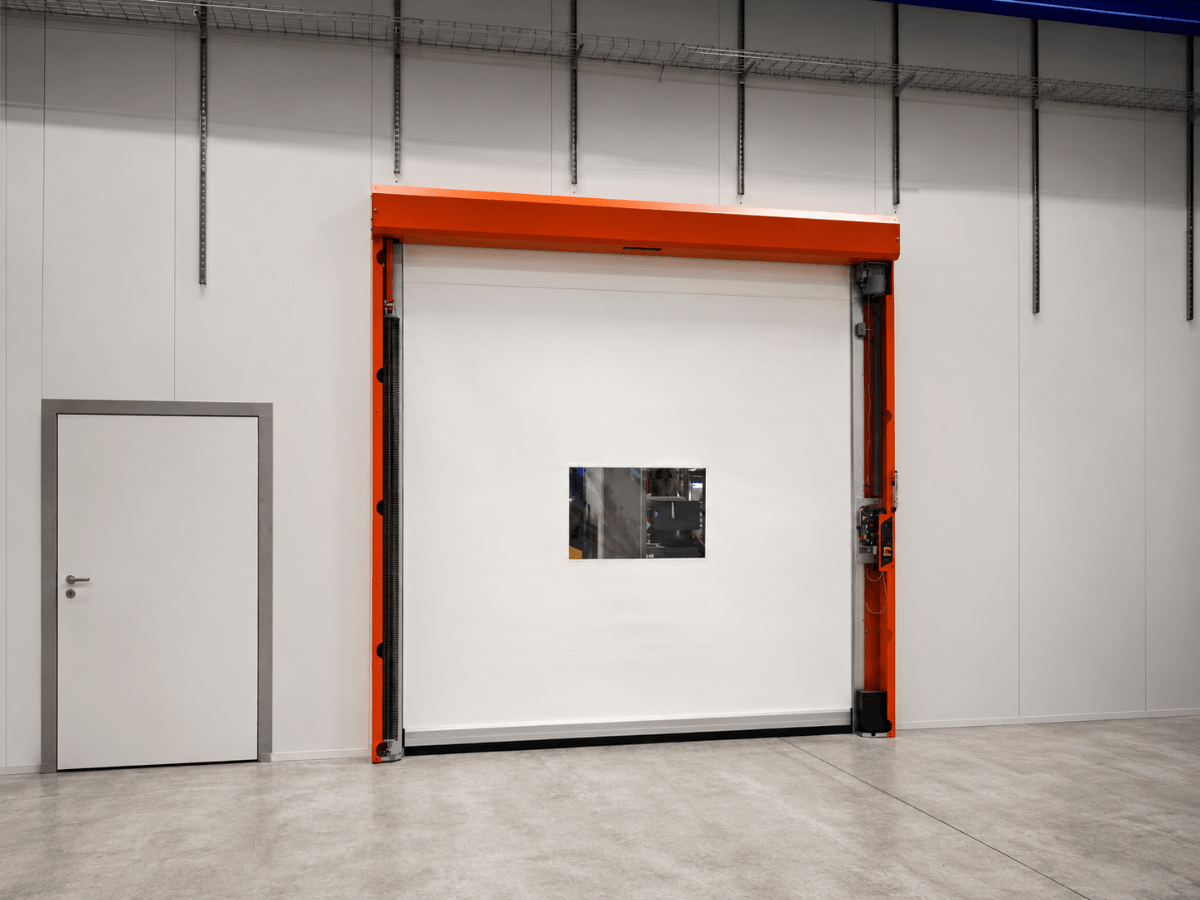

Hermetic sealing elements reduce air leakage between zones and help maintain stable pressure conditions. The door system can also be integrated into cleanroom interlock systems when controlled separation between areas is required.
WARRANTY

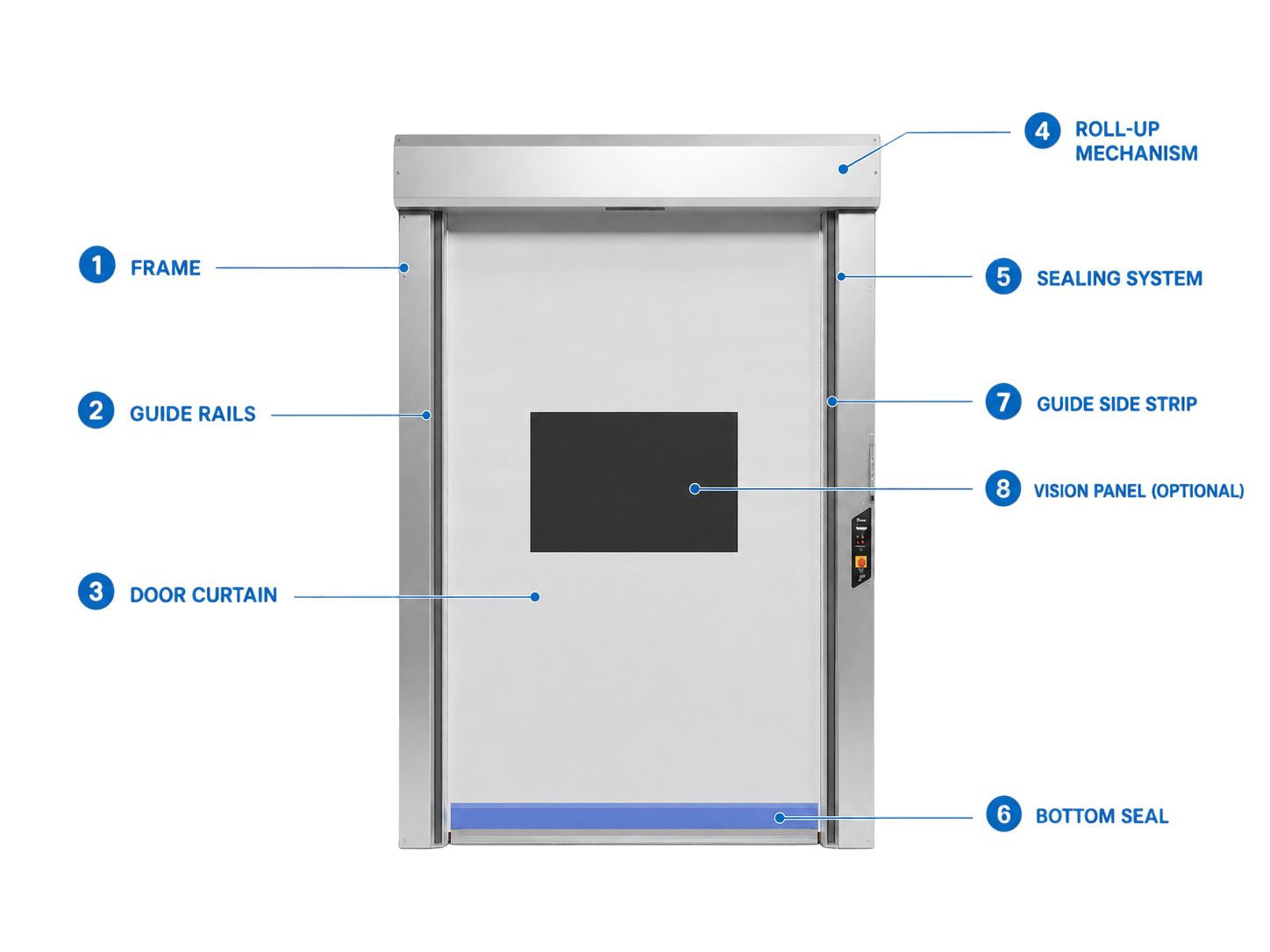

DOOR SYSTEM
1 FRAME
Anodized aluminium structural frame with optional stainless steel or PVC-coated finish.
2 GUIDE RAILS
Vertical guide rails ensuring stable and precise movement of the PVC curtain, with reinforced guidance elements for long-term reliability.
3 DOOR CURTAIN
FDA-approved PVC curtain for cleanroom environments with optimised surface treatment to minimise friction and particle generation.
4 ROLL-UP MECHANISM
Compact roll-up mechanism positioned above the opening, enabling fast vertical door movement and efficient use of space.
5 SEALING SYSTEM
Integrated rubber sealing system reduces air leakage and ensures stable separation between cleanroom zones.

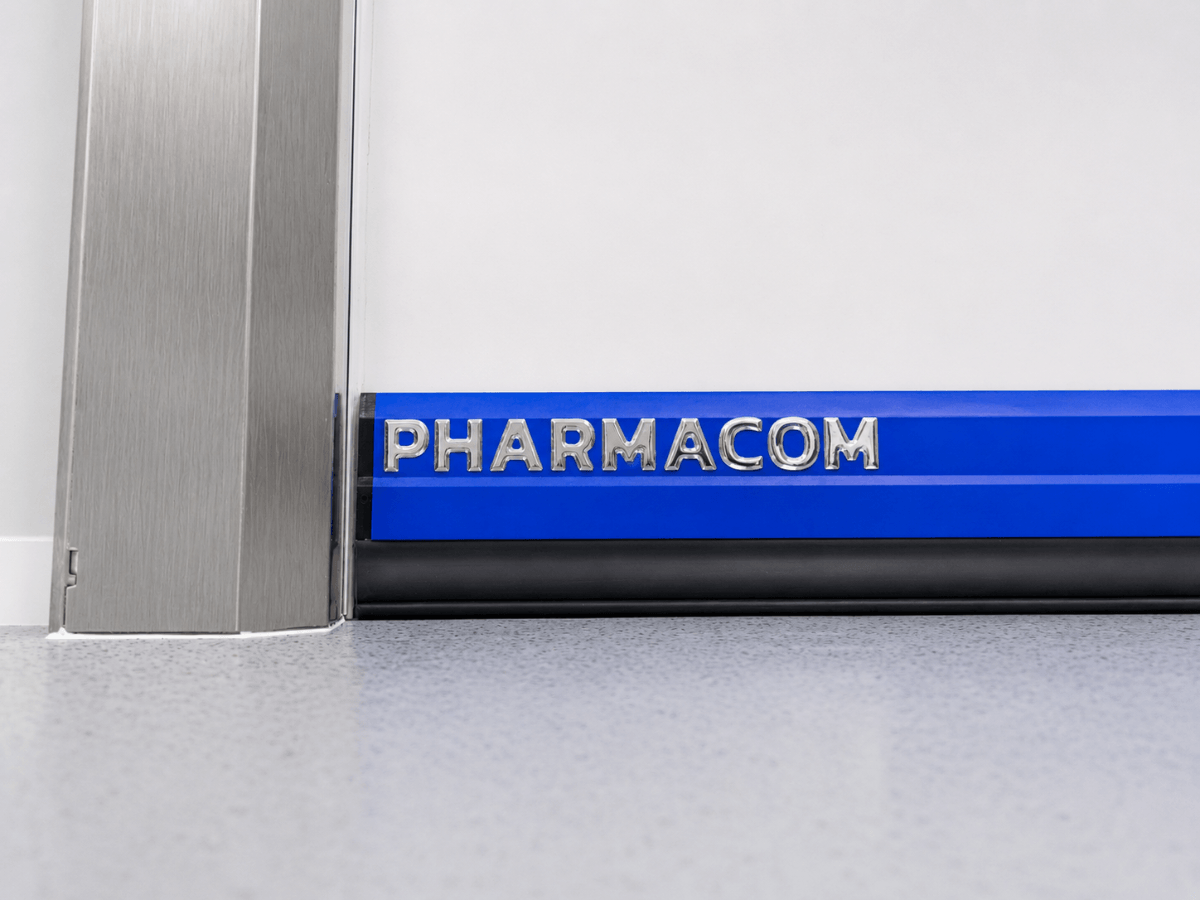

6 BOTTOM SEAL
Flexible bottom sealing element compensating floor unevenness and ensuring consistent and reliable sealing performance.

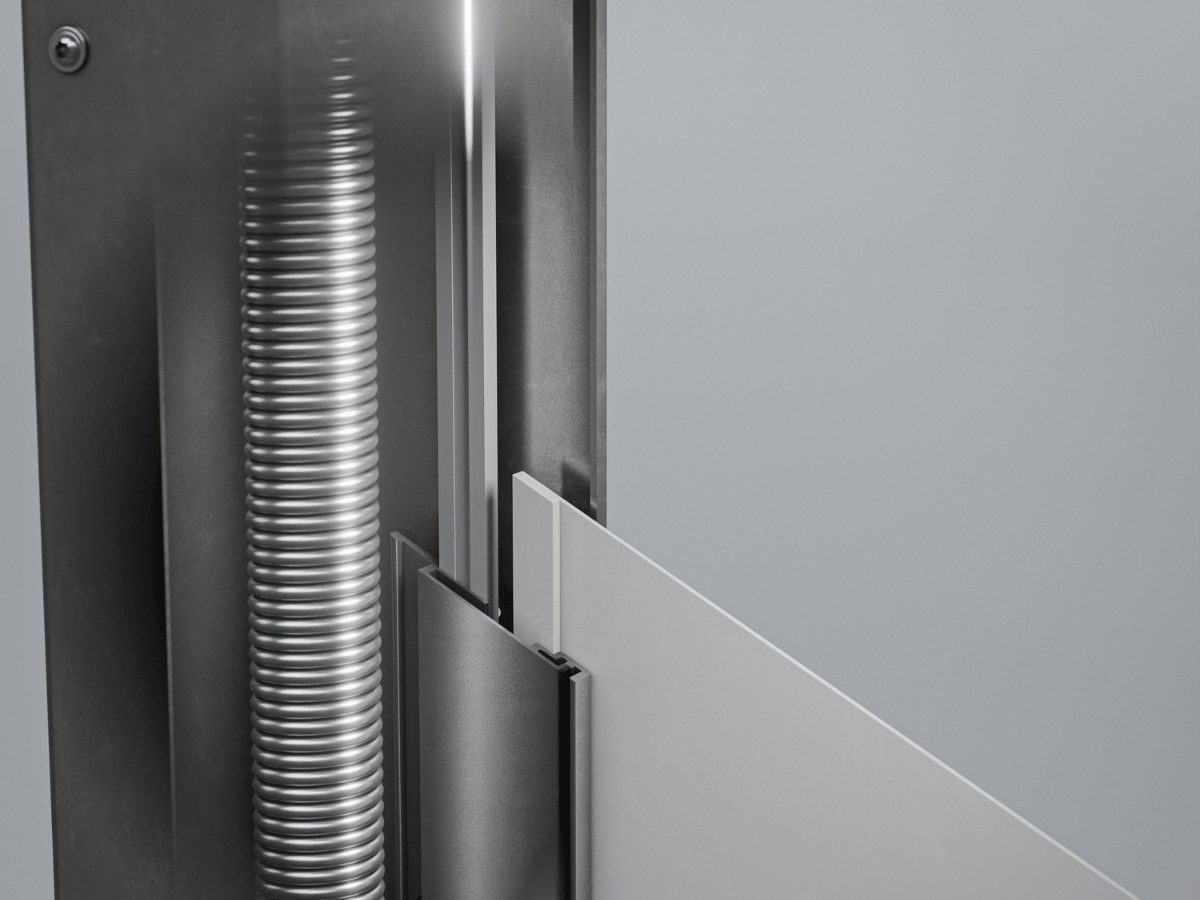

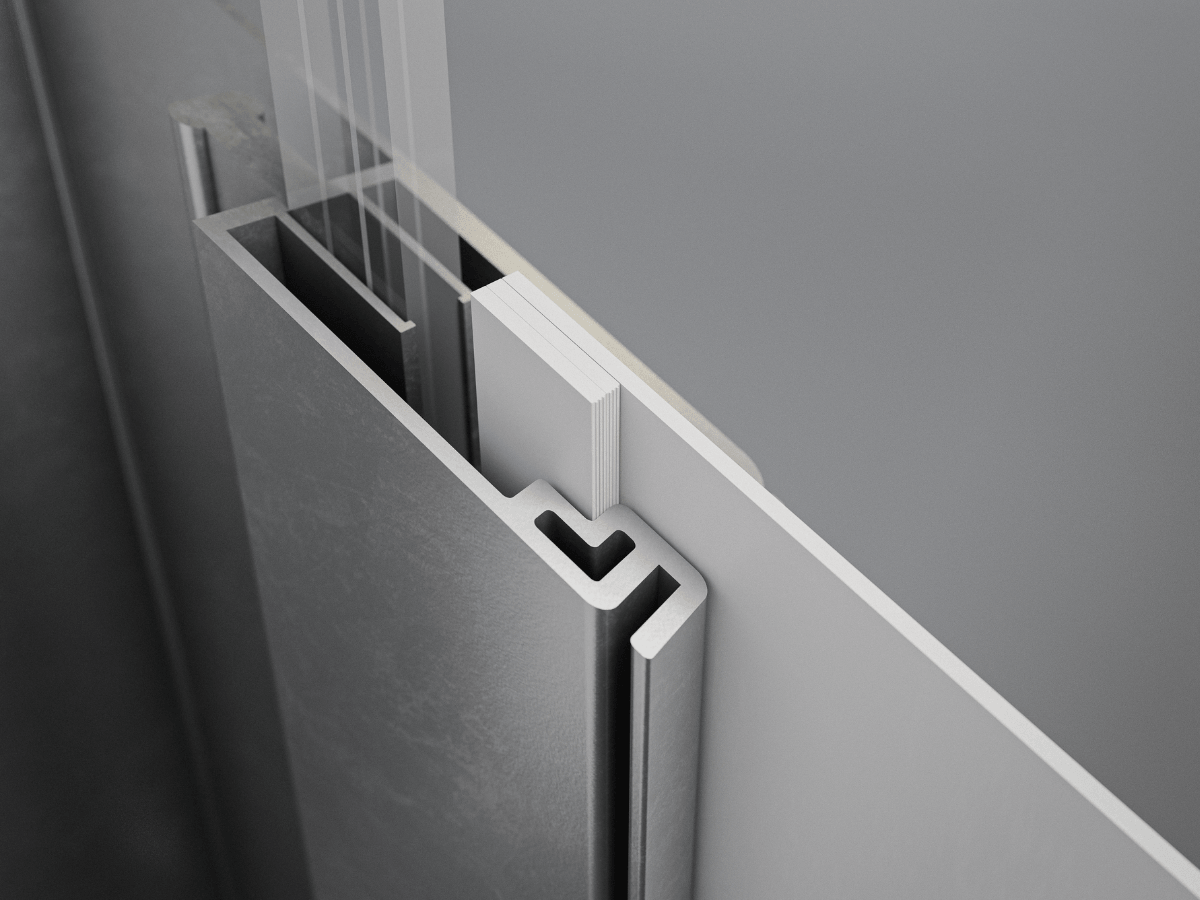

7 GUIDE SIDE STRIP
Side strip integrated within the guide rails, absorbing pressure differences and supporting stable and controlled operation.

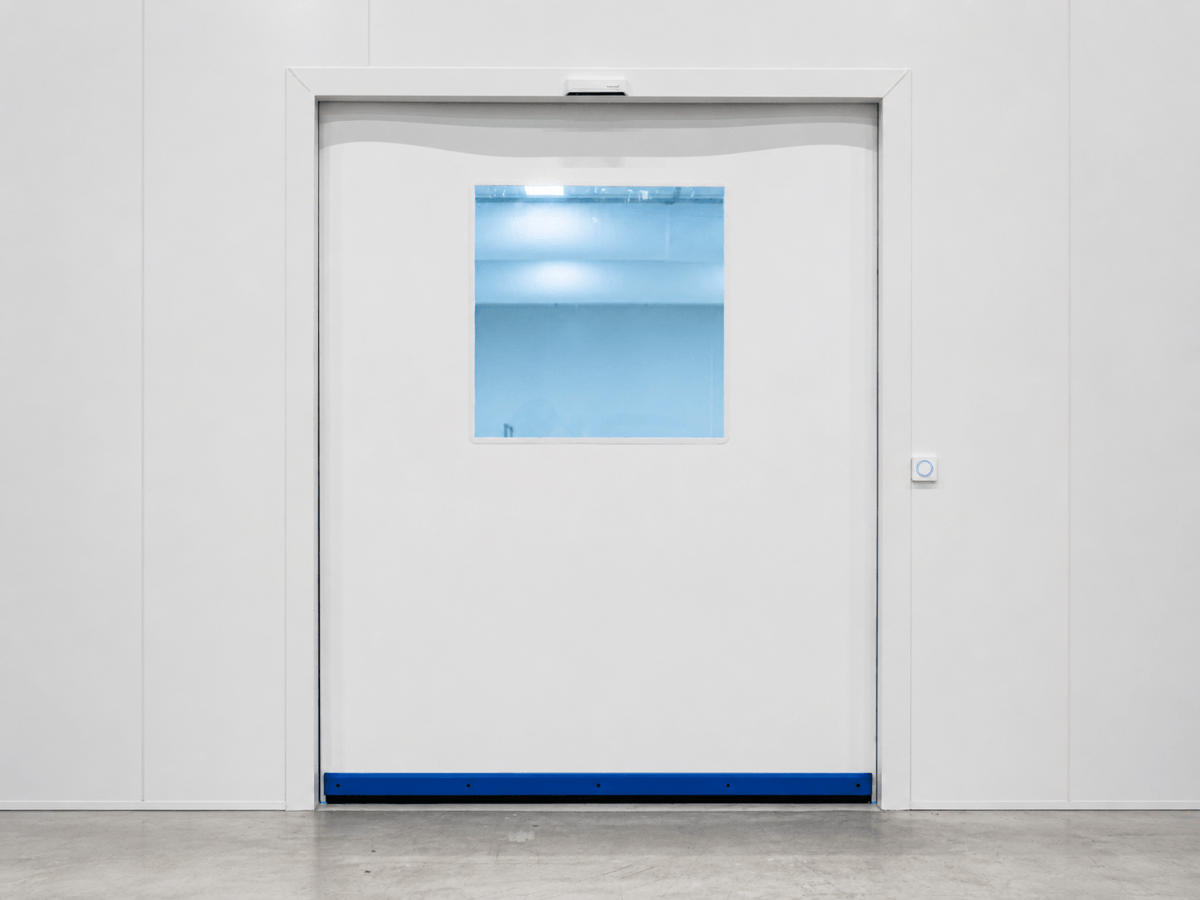

8 VISION PANEL
Transparent panel integrated into the door curtain, providing visibility between cleanroom areas without compromising separation.
SAFETY SYSTEM

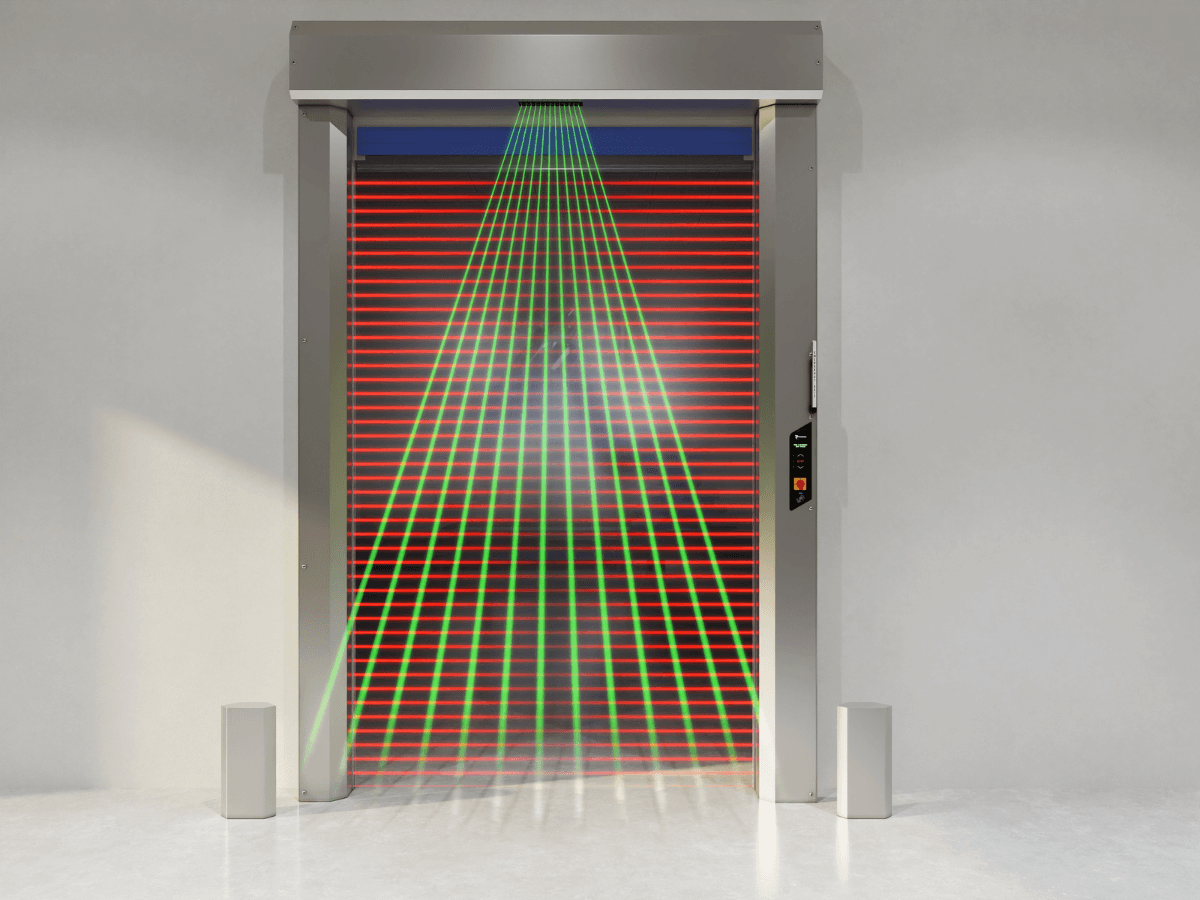

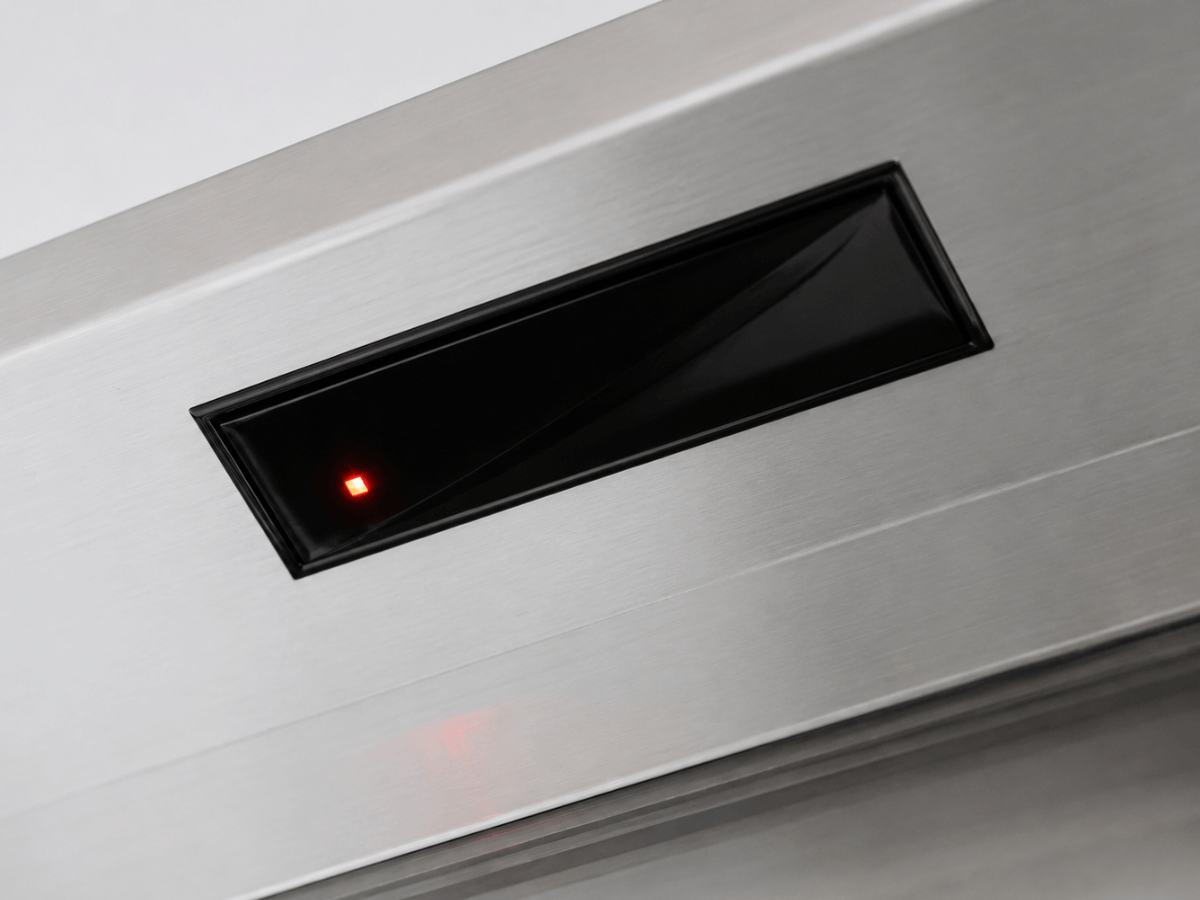

1 TLG LIGHT CURTAIN
Integrated light curtain detects obstacles within the door opening and prevents closing.
2 DUAL SAFETY SENSORS
Two safety sensors monitor the door area — one integrated in the cover and one above the opening.

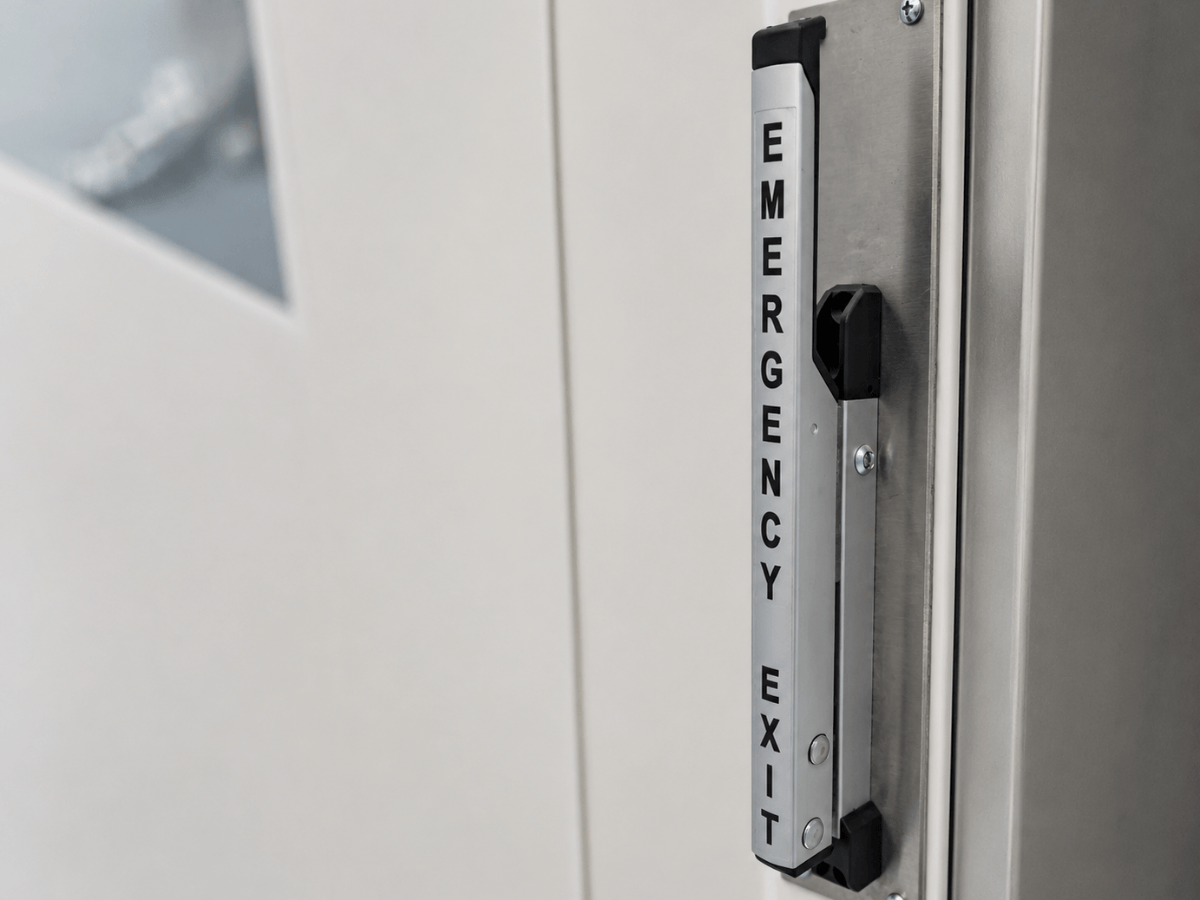

3 MECHANICAL EMERGENCY OPENING
Manual door opening in case of power failure, ensuring continued access.

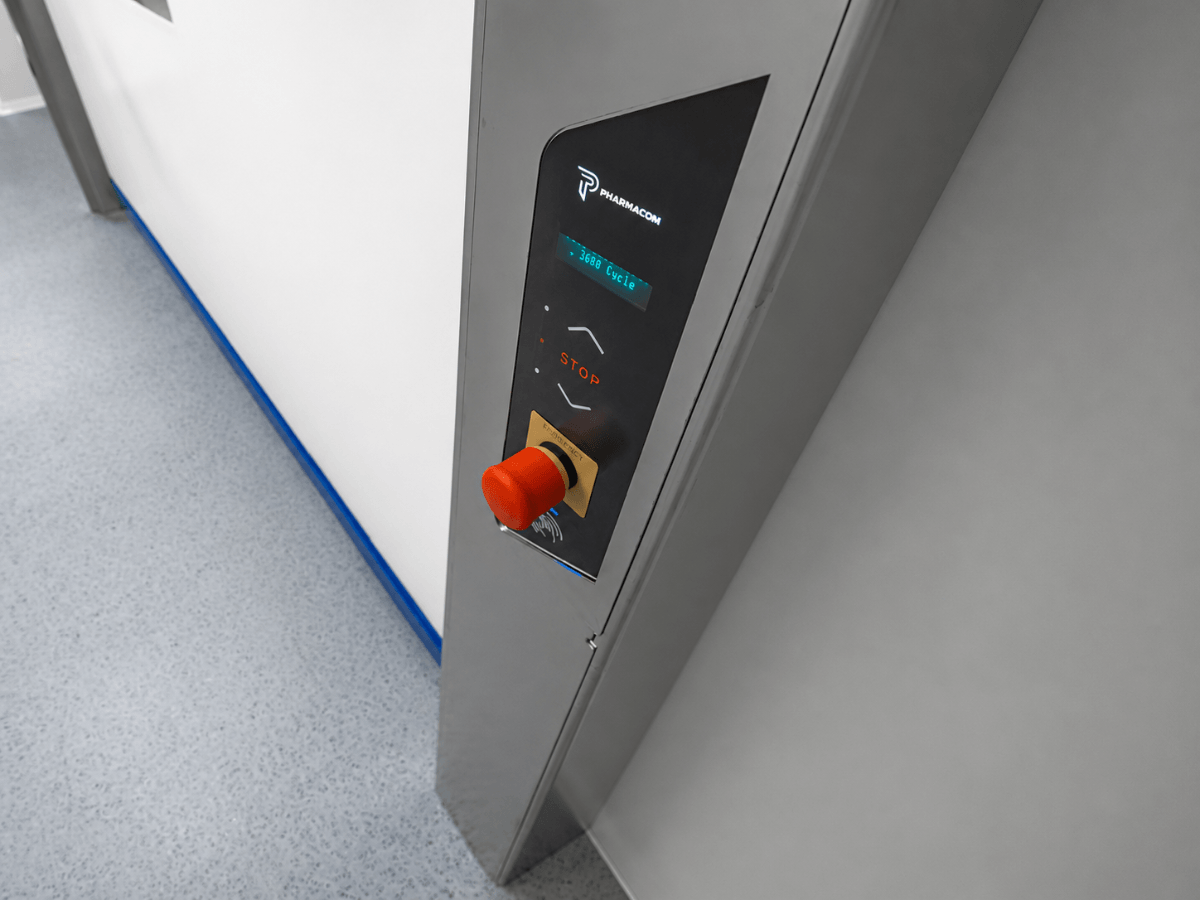

4 EMERGENCY STOP BUTTON
Frame-mounted stop button for immediate interruption of door movement.
CONTROL SYSTEM

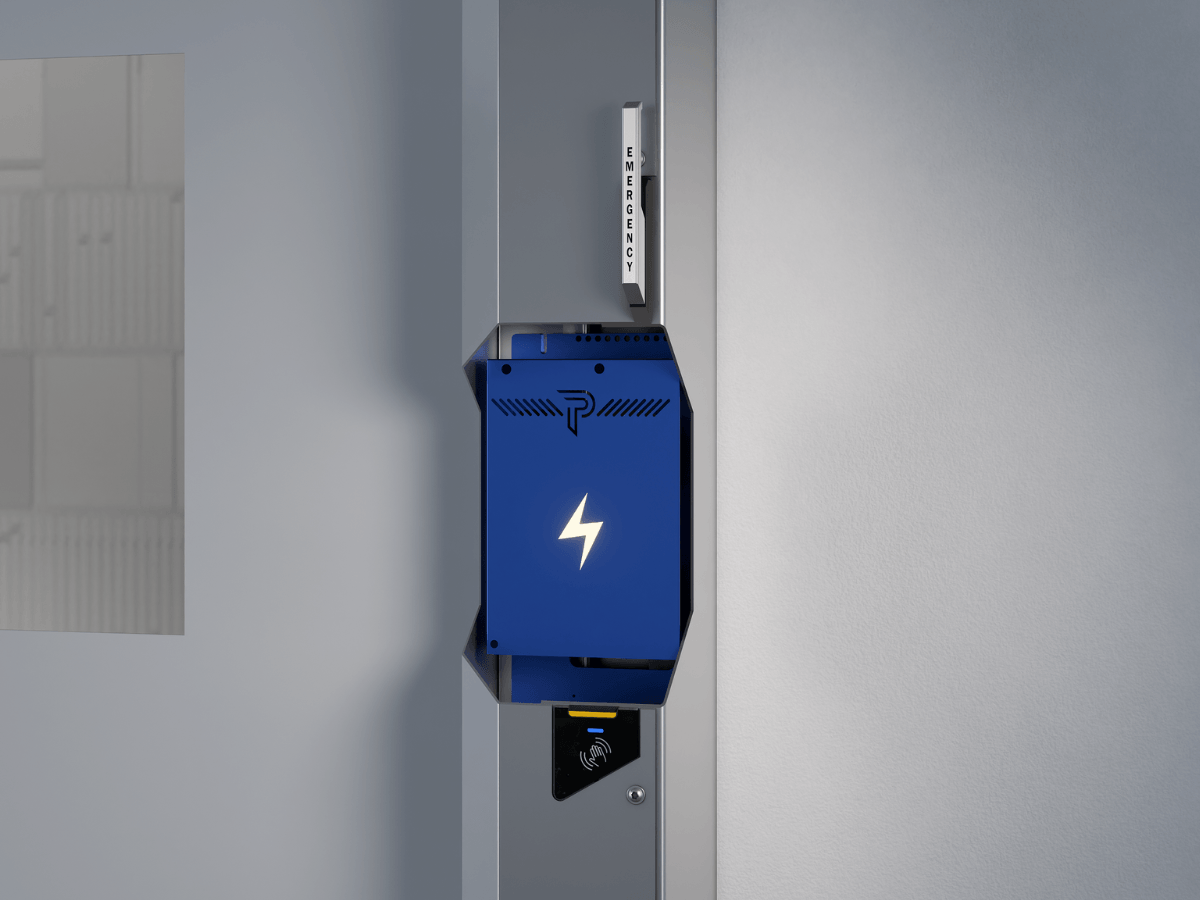

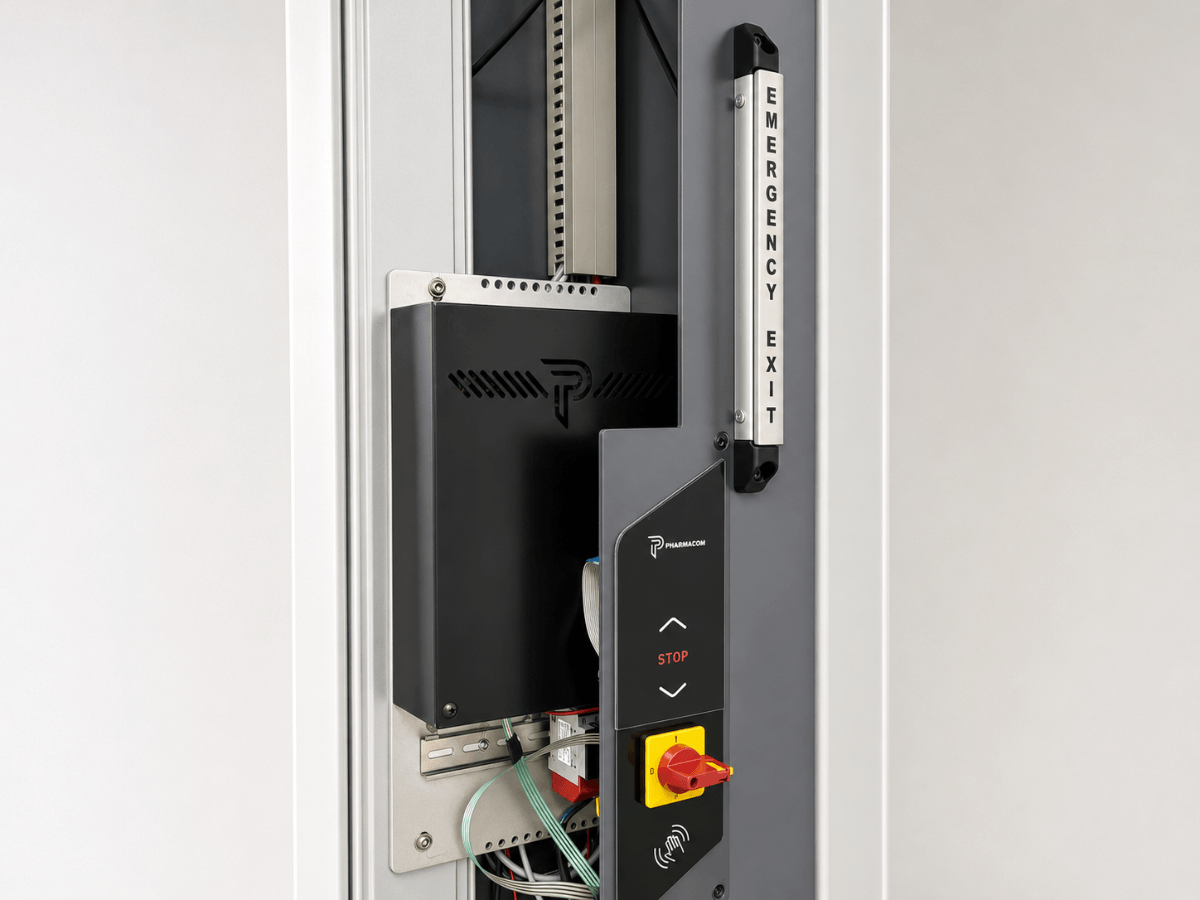

1 INTEGRATED CONTROL ELECTRONICS
Control unit integrated into the door frame without external cabinets.
2 MICROPROCESSOR CONTROL
Precise adjustment of opening and closing parameters.
3 DIAGNOSTICS
Integrated display for monitoring and parameter configuration.
4 CYCLE TRACKING
Tracks operating cycles for preventive maintenance.
5 POWER CONTROL
Main ON/OFF switch for safe servicing.
CONFIGURATION OPTIONS
1 DIMENSIONS
◆ Custom dimensions on request
2 SAFETY
◆ Mechanical emergency opening
◆ Emergency opening via UPS (power failure backup)
3 SIGNALISATION
◆ Traffic light (flush-mounted)
◆ Rotating warning light
4 CONTROL & INTEGRATION
◆ Fire alarm interface
◆ Interlock system integration
◆ PHA-DO-SI smart door integration (view details)
5 SURFACE FINISHES
◆ Stainless steel finish
◆ PVC-coated finish
◆ Custom RAL colour finish
6 VISION
◆ Integrated vision window

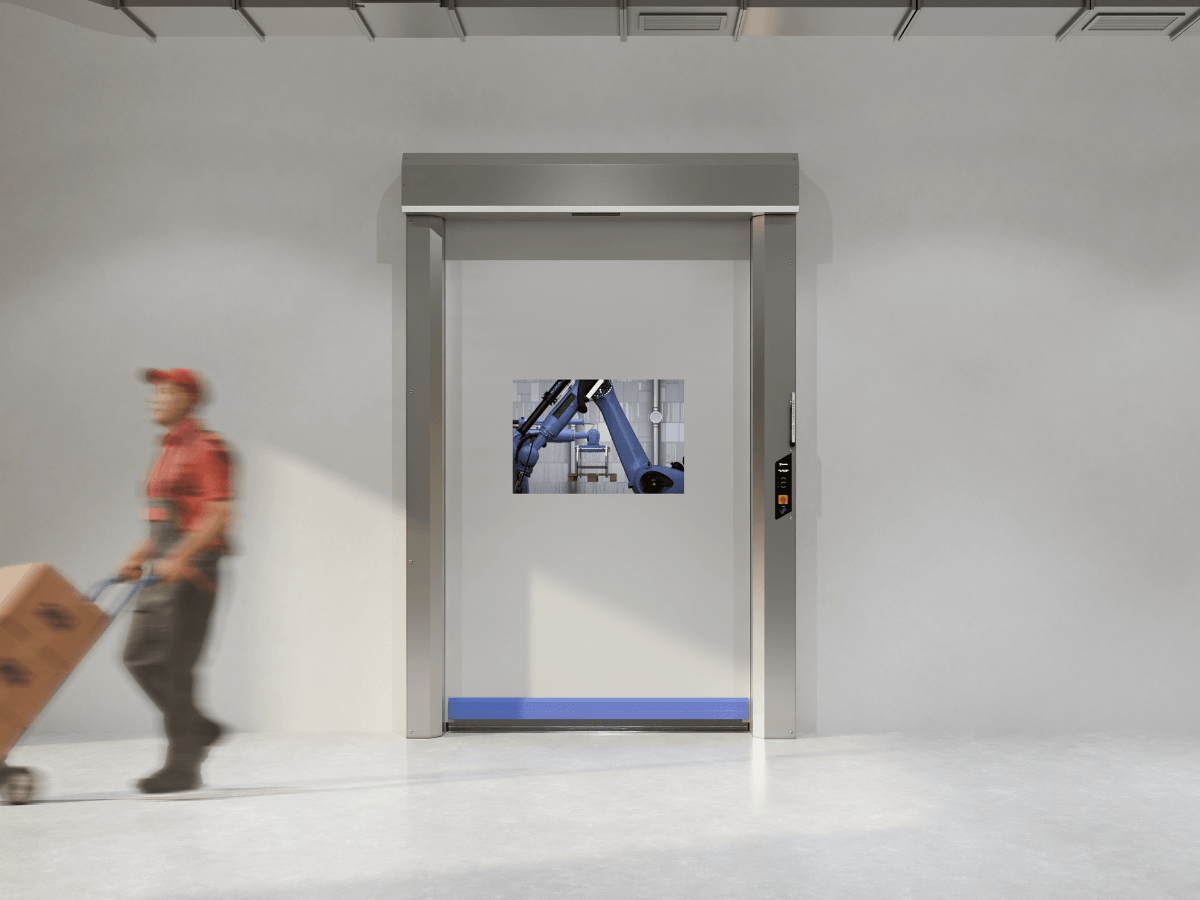

For High Traffic Areas

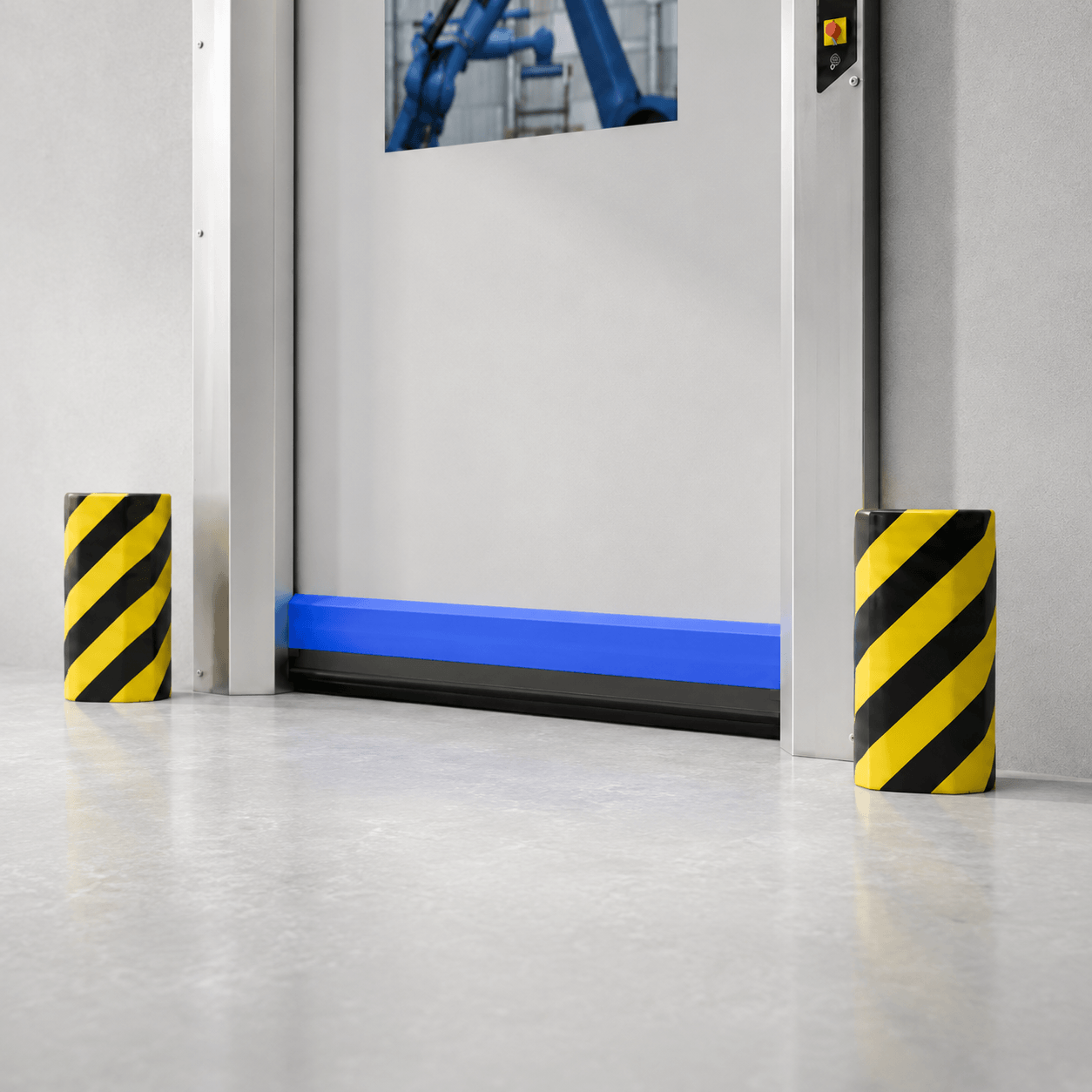

DOOR PROTECTION BUMPER
CERTIFICATION & COMPLIANCE
Independently verified for performance, safety and cleanroom suitability
Air Permeability Test
Verified sealing performance under positive and negative pressure conditions
Fraunhofer IPA
Assessed according to EU GMP requirements for cleanroom suitability
CE Conformity
Compliance with applicable EU safety and performance directives
TÜV Austria
Inspection reports confirming correct installation and operational safety
TECHNICAL DATA
Access detailed technical data for the PVC Roll-Up Door Medico Cleanroom
RECEIVE TECHNICAL DATASHEET
