TECHNICAL SPECIFICATIONS
KEY FEATURES
Sealing Profile System
Supports pressure stability by reducing air leakage between cleanroom zones.
Precise Door Alignment
Ensures smooth sliding motion and accurate door leaf positioning.
Toothed Belt Drive System
Provides controlled opening and closing for reliable daily operation.
Dual-Side Safety Sensors
Monitor the door area from both sides to support safe movement.
Floor Guide Stabilisation
Keeps the door leaf precisely guided and stable during movement.
Adjustable Operating Parameters
Opening speed, closing speed, hold-open time and opening width can be adjusted.
INDUSTRIES & APPLICATIONS
PRODUCT DETAILS
PRODUCT OVERVIEW

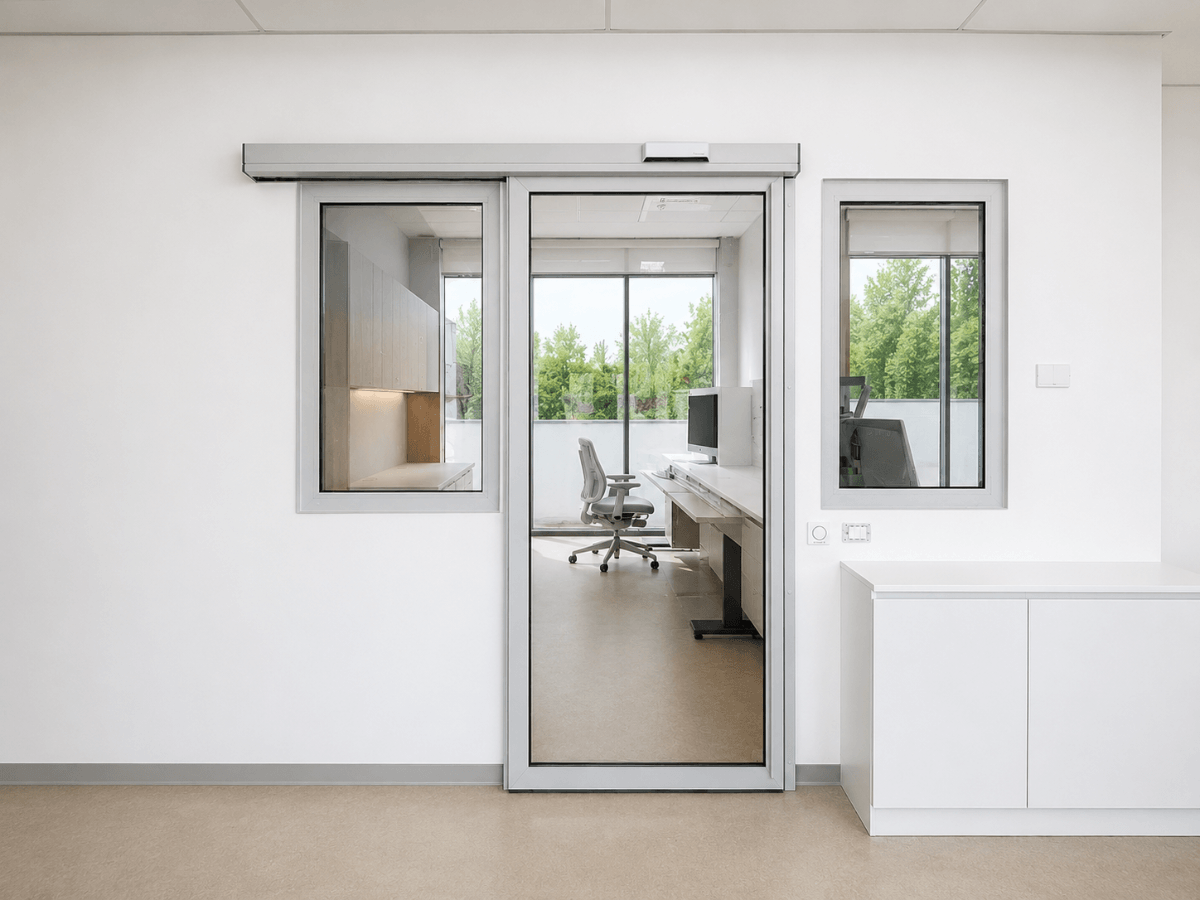

Light hermetic sliding doors operate on a sliding system with integrated sealing profiles, ensuring controlled separation between cleanroom zones. The door leaf moves along a guided rail system, enabling stable and precise movement during opening and closing. Movement is driven by a toothed belt system, allowing consistent and controlled operation in everyday use.
Sealing profiles installed in the opening reduce air leakage between areas and support stable pressure conditions. The floor guide ensures correct positioning of the door leaf and smooth movement throughout the entire operating cycle. Designed for minimal installation space along the wall, the system enables integration in environments with limited available space.
The system ensures reliable performance in everyday operation and adapts to different cleanroom layouts.
WARRANTY

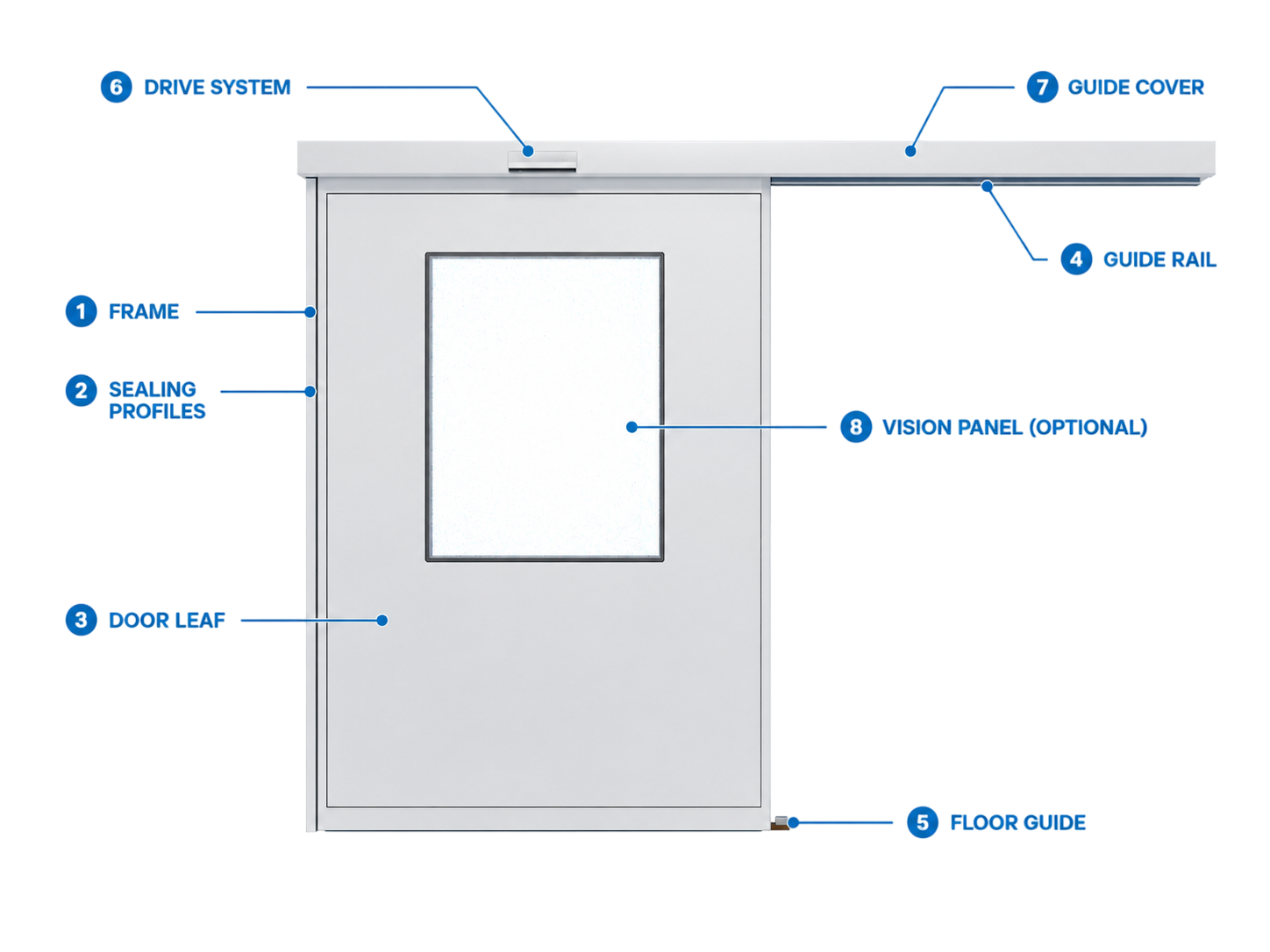

DOOR SYSTEM
1 FRAME
Anodized aluminium frame enabling stable installation and cleanroom integration.
2 SEALING PROFILES
Sealing elements reducing air leakage and supporting pressure stability up to 15 Pa.
3 DOOR LEAF
35 mm thick door panel with coated, maxcompact, or glass surface options.
4 GUIDE RAIL
Upper aluminium guide system ensuring smooth and controlled door movement.
5 FLOOR GUIDE
Provides precise positioning and stable alignment during operation.
6 DRIVE SYSTEM
Advanced drive system for smooth and reliable hermetic door operation.
7 GUIDE COVER
Anodized aluminium cover protecting the guide system and ensuring a clean finish.

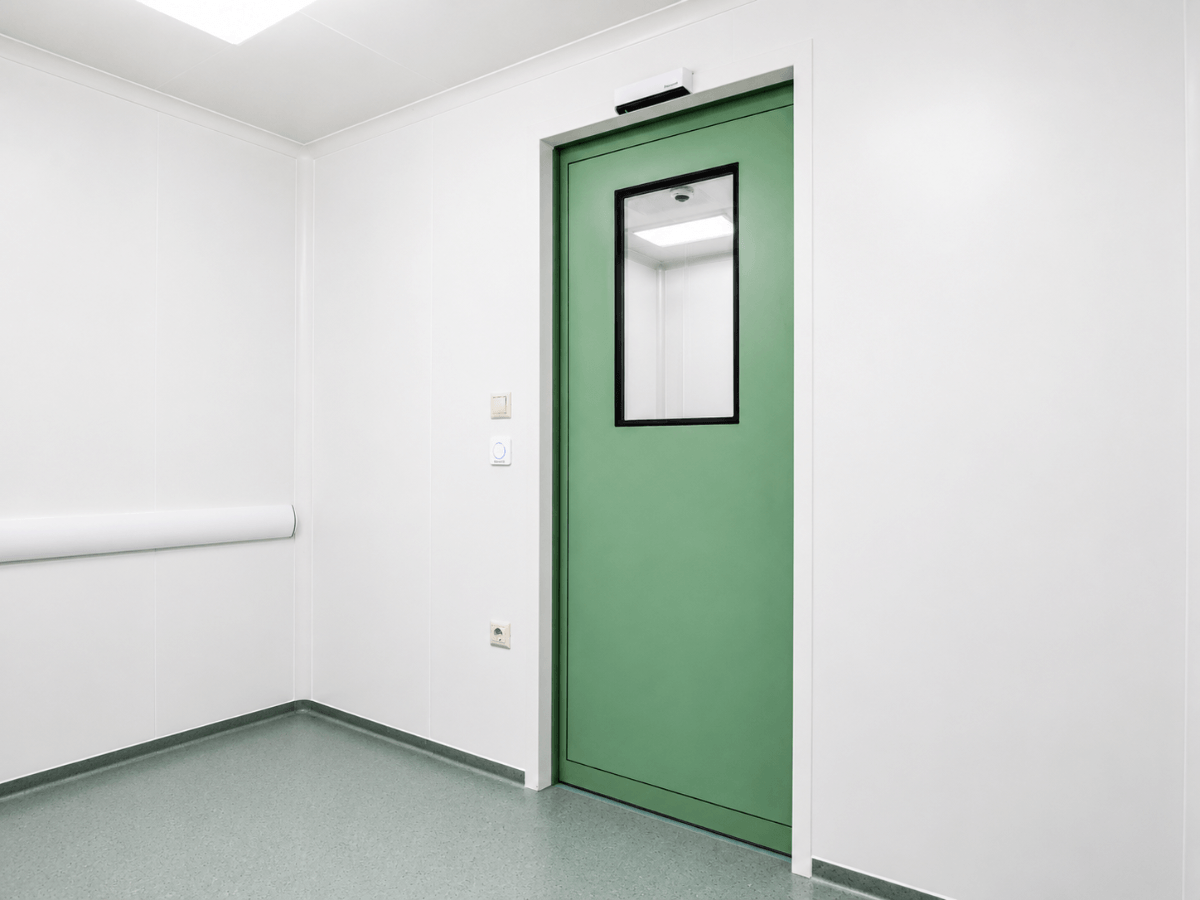

8 VISION PANEL (OPTIONAL)
Optional glazed section improving visibility between cleanroom areas.
SAFETY SYSTEM

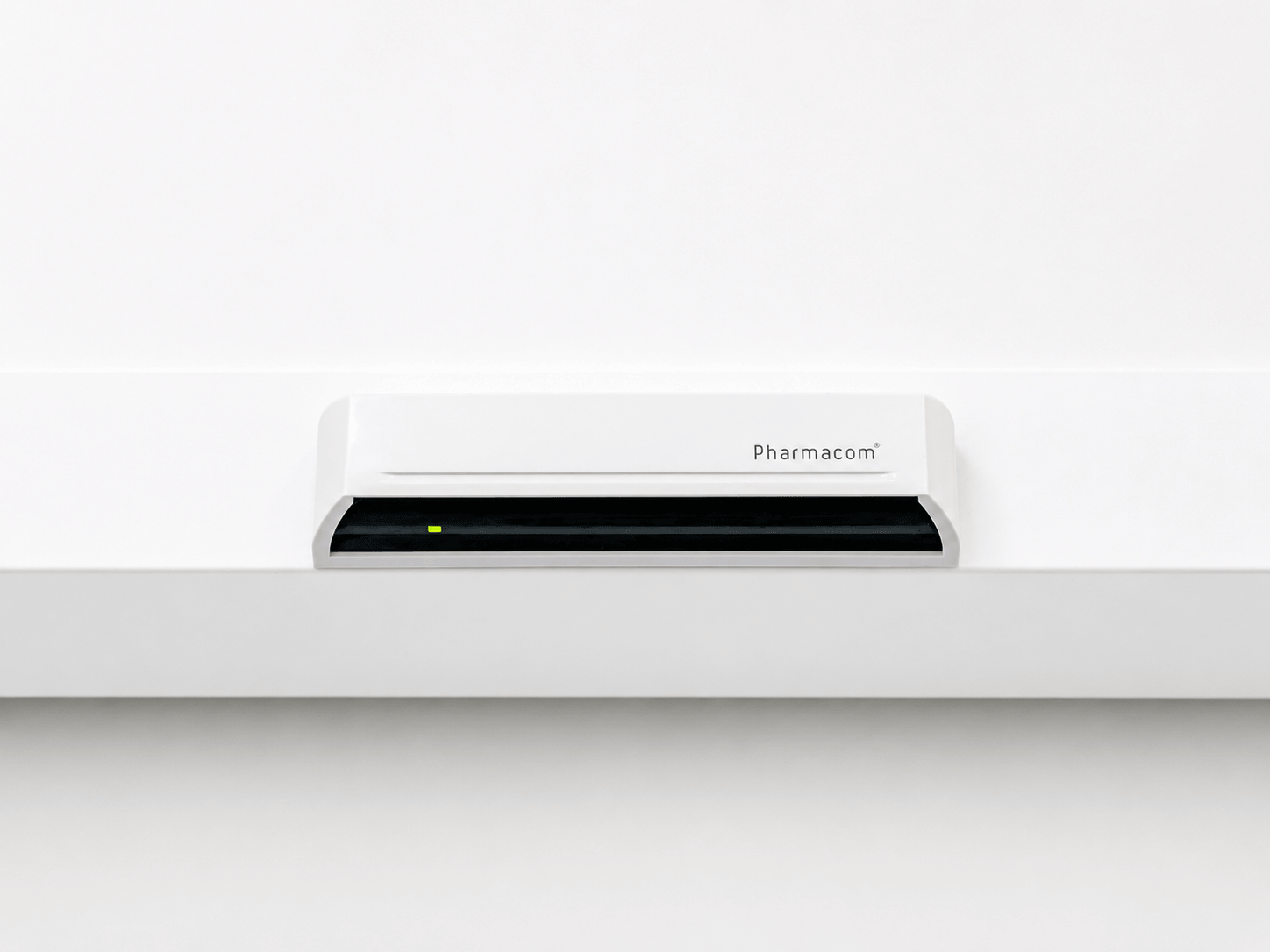

1 PRESENCE SENSORS
Sensors on both sides monitor the door area and detect obstacles during operation.
2 OBSTACLE DETECTION
The system prevents door movement when an obstruction is detected.
3 VISUAL STATUS INDICATION
Integrated LED indicators show door status (open / closed) to support safe operation.
4 ELECTRICAL GROUNDING
The door system is electrically grounded to ensure safe operation.
5 MECHANICAL EMERGENCY OPENING
Manual opening via a discreet built-in handle in case of power loss.
CONTROL SYSTEM
1 FUNCTIONAL CONTROL PANEL (FCP)
Multiple operating modes for controlled door operation.
2 OPERATING MODES
Automatic, reduced opening, exit mode, hold-open and manual operation.
3 USER INTERFACE
Control via buttons and LED indicators with status indication.
4 PARAMETER SETTINGS
Opening speed, closing speed, hold-open time and opening width are adjustable.
5 AUTOMATIC CONFIGURATION
Automatic setup and calibration after installation or adjustment.
6 DISPLAY & DIAGNOSTICS
LED indicators for system status and diagnostics.
CONFIGURATION OPTIONS
1 DIMENSIONS
- Custom dimensions on request
2 DOOR TYPE

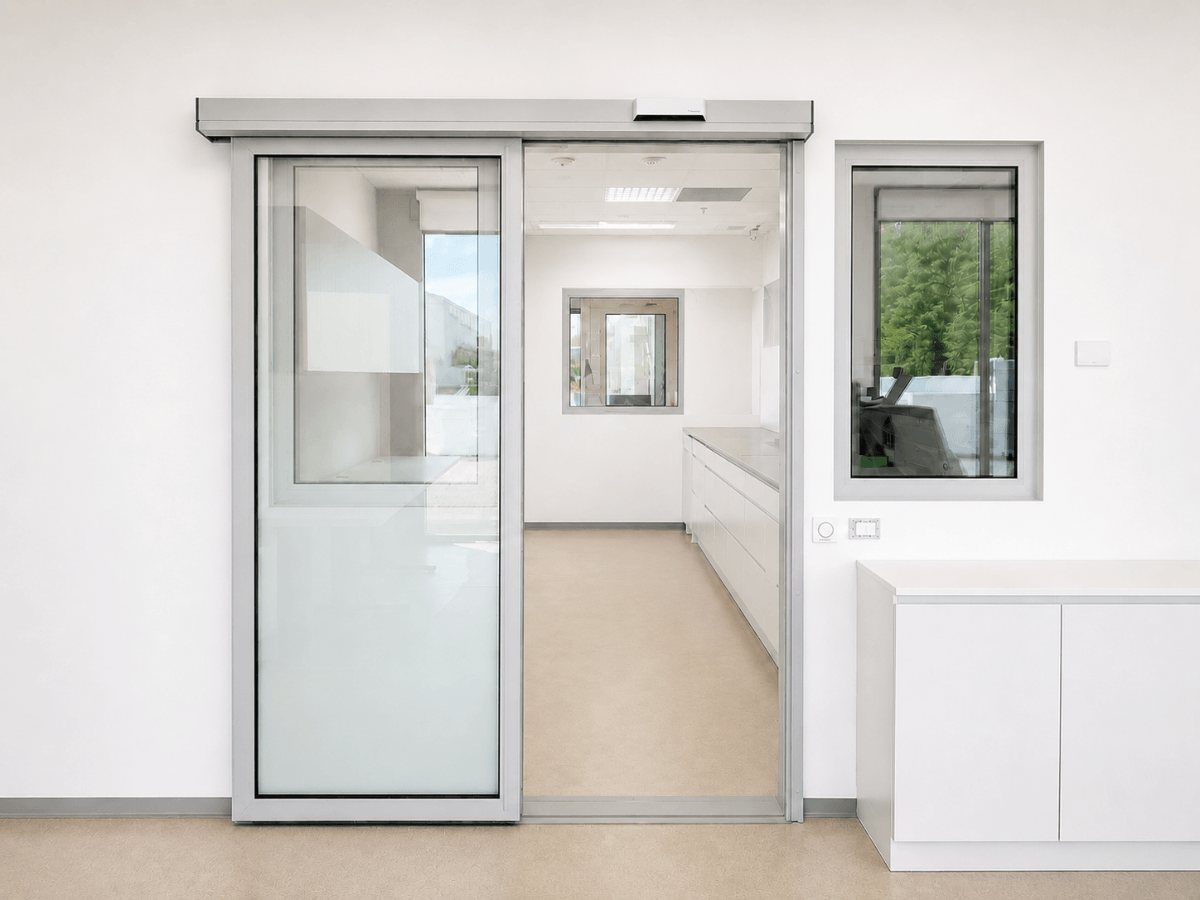

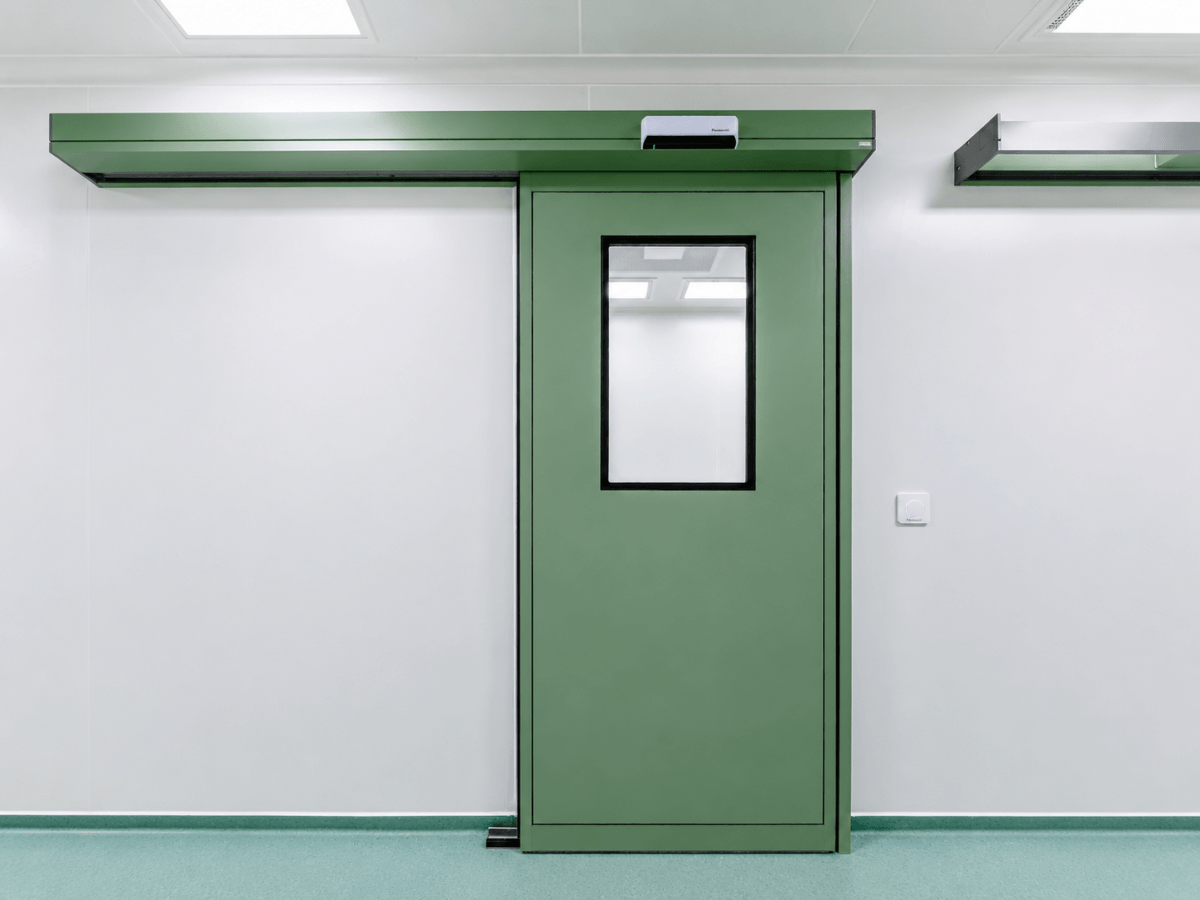

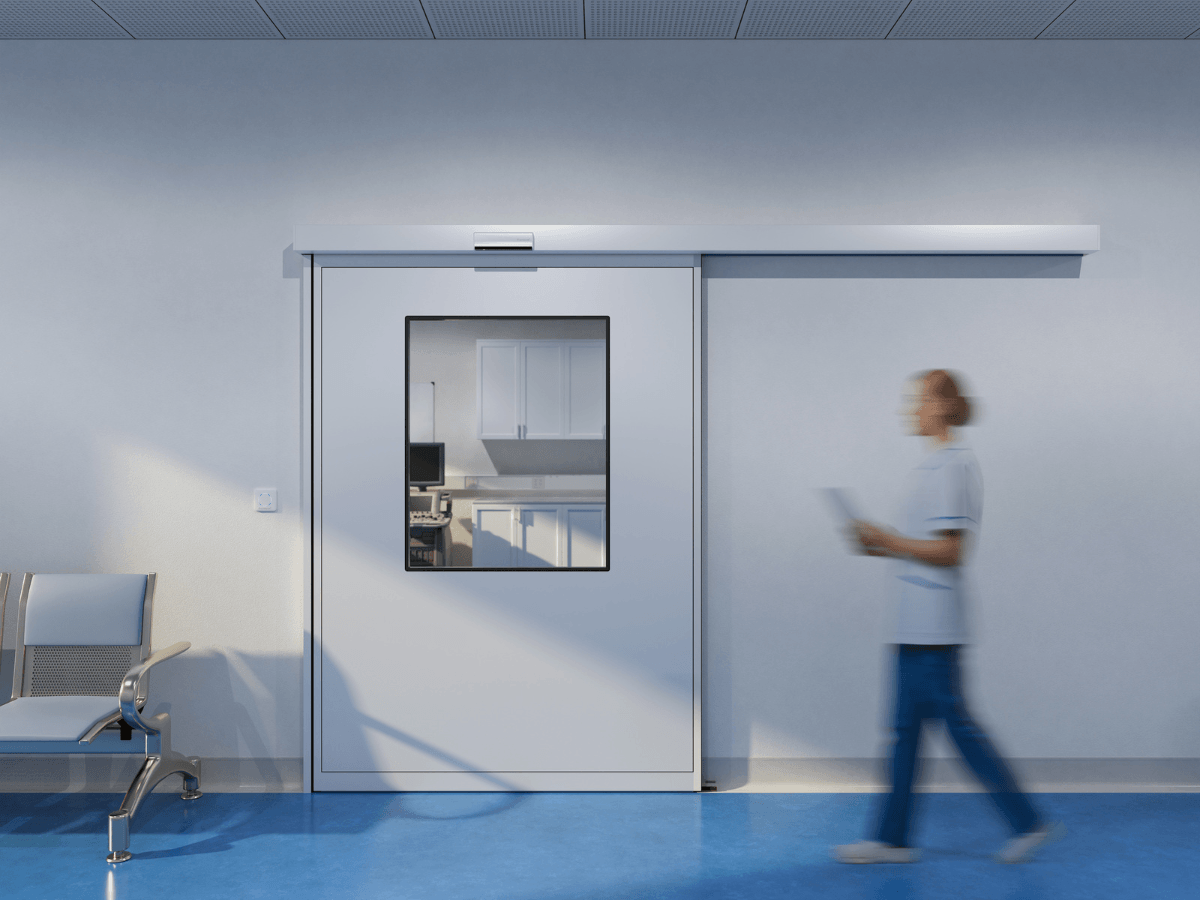

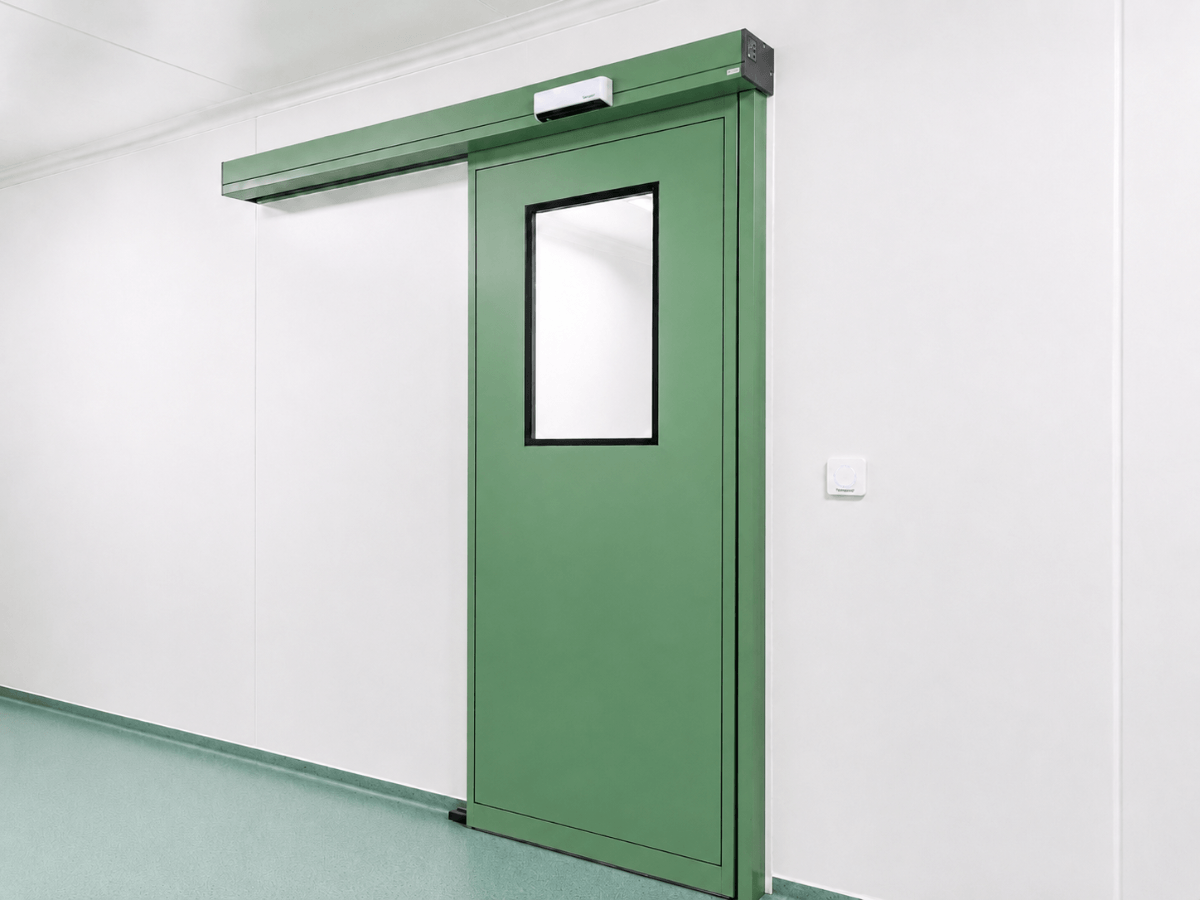

- Single-wing

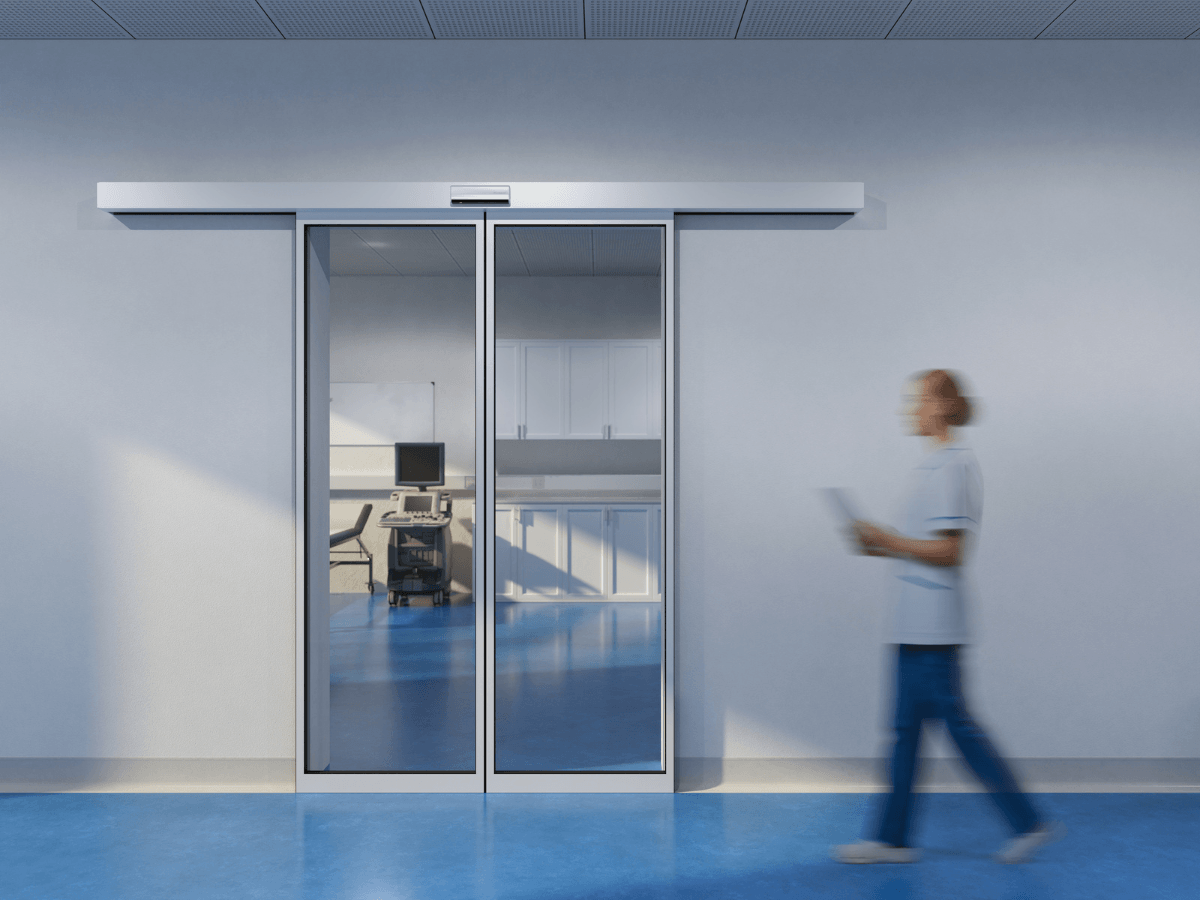

- Double-wing
3 ACTIVATION

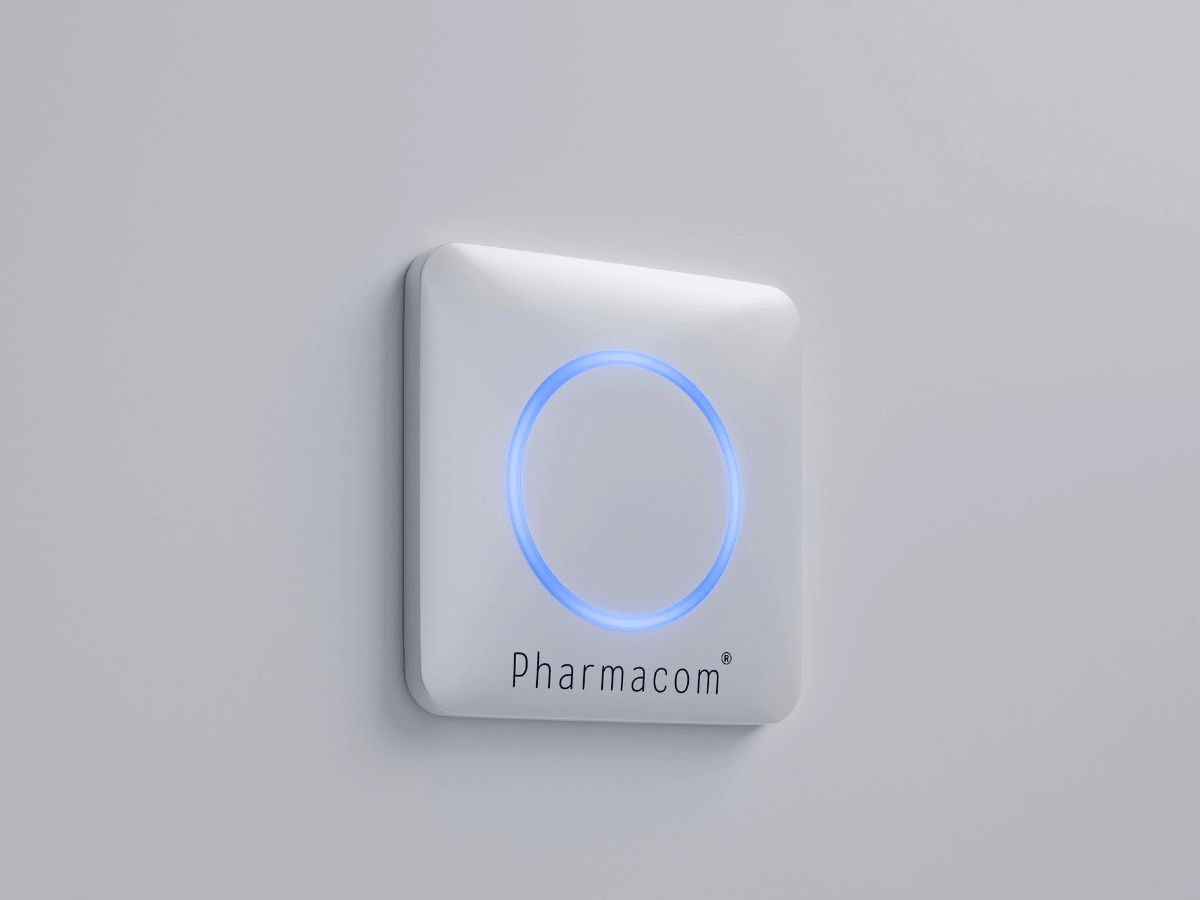

- Cleanroom touchless button
- Radar sensor
4 CONTROL & INTEGRATION
- Interlock system integration
- PHA-DO-SI smart door integration (view details)
5 DOOR LEAF DESIGN
- Solid door panel with HPL compact laminate surface

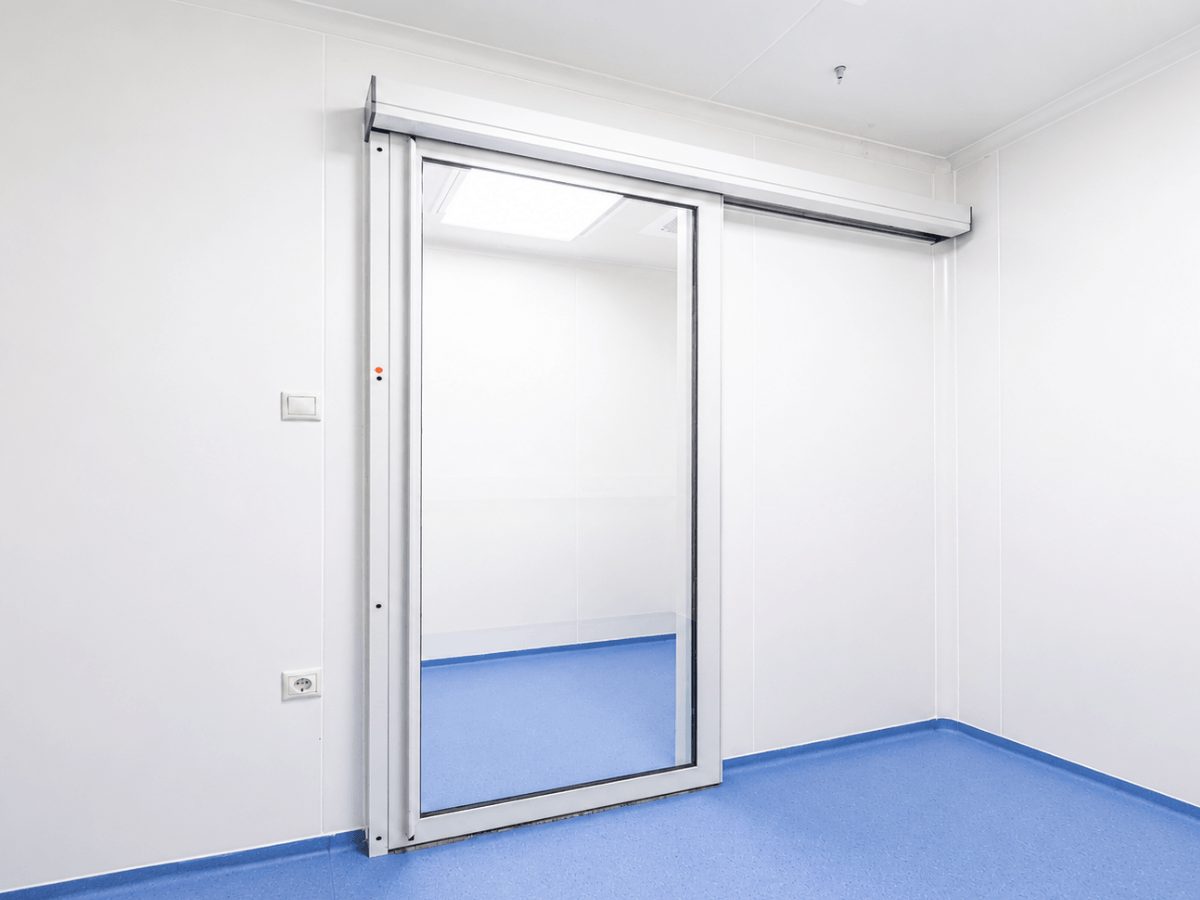

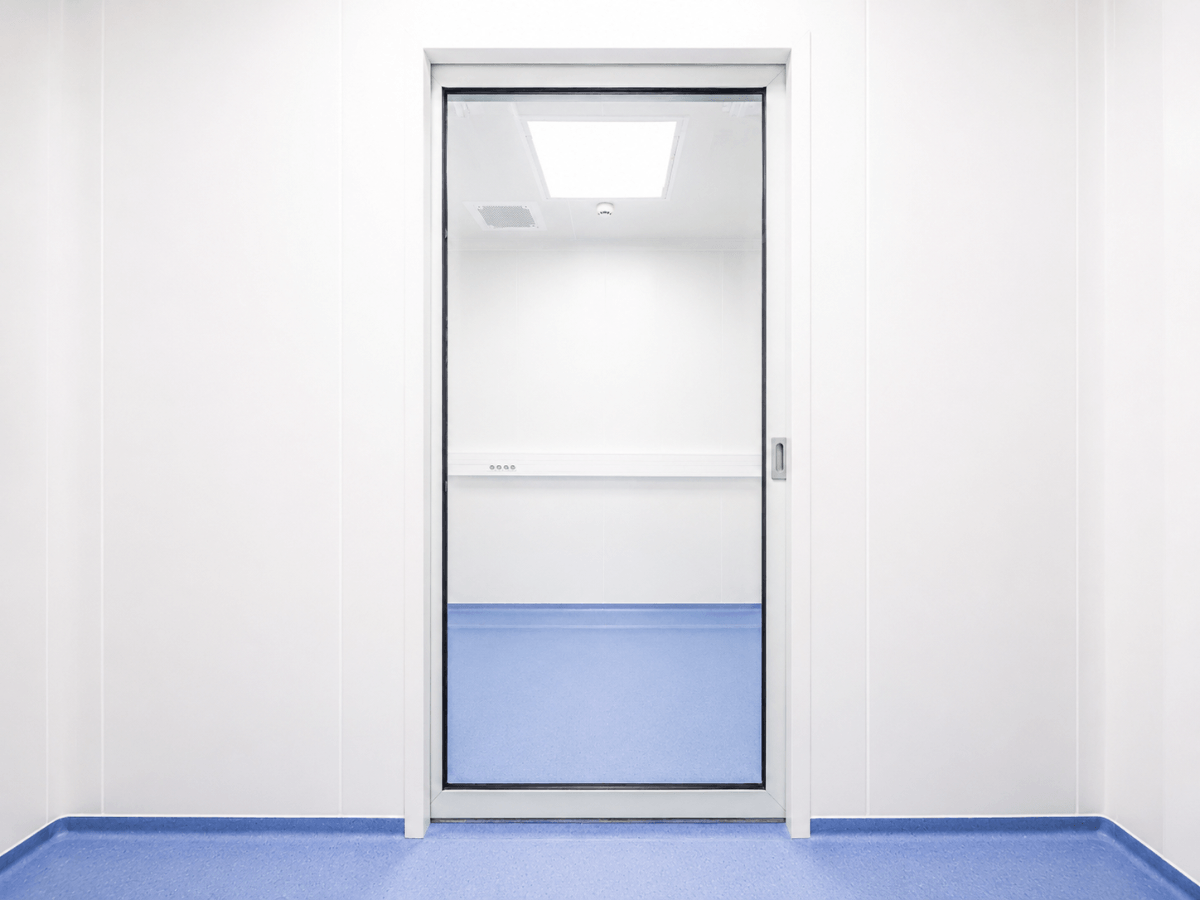

- Fully glazed door panel
- Custom RAL colour finish
6 VISION
- Integrated vision window
CERTIFICATION & COMPLIANCE
CE Conformity
Compliance with applicable EU safety and performance directives
TECHNICAL DATA
Access detailed technical data for the PVC Roll-Up Door Medico Cleanroom
RECEIVE TECHNICAL DATASHEET
